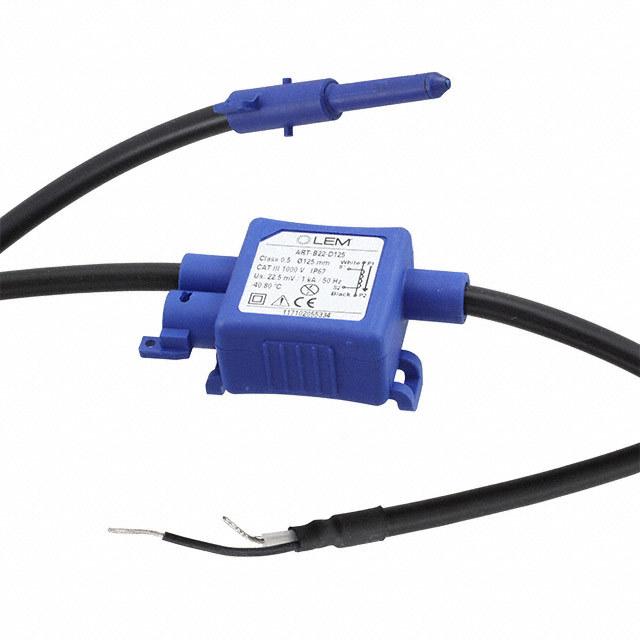

ART-B22-D70
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ART-B22-D70 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ART-B22-D70 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ART-B22-D70 |
|---|---|
| Manufacturer | LEM USA, Inc. |
| Description | CURR SENSE XFMR FLEXIBLE COIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $45.04 | $42.667 | $37.927 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $35.556 | $34.371 | $33.186 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ART-B22-D70 | Manufacturer | LEM USA, Inc. |
|---|---|---|---|
| Description | CURR SENSE XFMR FLEXIBLE COIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1049 pcs | Data sheet | ART Series |
| Category | Transformers | Type | Non-Invasive (Split Core) |
| Turns Ratio - Primary:Secondary | Rogowski Coil | Termination Style | Wire Leads |
| Size / Dimension | 2.205" L x 1.326" W (56.01mm x 33.69mm) | Series | ART |
| Ratings | - | Other Names | 398-1188 90.M4.99.000.0 ART B22 D70 ART-B22-D070 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 180µH | Height - Seated (Max) | 0.744" (18.91mm) |
| Frequency Range | 50/60Hz | Energy Time (E.T.) | - |
| Detailed Description | Rogowski Coil Current Sense Transformer 50/60Hz 55 Ohm 180µH Free Hanging (In-Line) | DC Resistance (DCR) | 55 Ohm |
| Current Ratio | - |
