VS5V0BN1EST15R

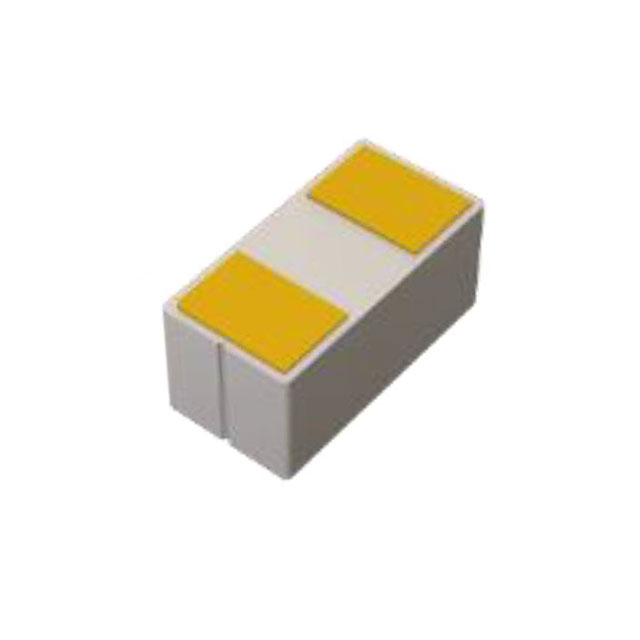

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS5V0BN1EST15R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VS5V0BN1EST15R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VS5V0BN1EST15R |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | TVS DIODE 5V 18V DSN0603-2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.136 | $0.124 | $0.089 | $0.069 | $0.044 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.037 | $0.025 | $0.023 | $0.02 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VS5V0BN1EST15R | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | TVS DIODE 5V 18V DSN0603-2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1165137 pcs | Data sheet | VS5V0BN1ES |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 18V | Voltage - Breakdown (Min) | 6V |
| Type | Zener | Supplier Device Package | DSN0603-2, SOD-962, SMD0603 |
| Series | - | Power Line Protection | No |
| Power - Peak Pulse | 36W | Packaging | Cut Tape (CT) |
| Package / Case | 0201 (0603 Metric) | Other Names | VS5V0BN1EST15RCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Capacitance @ Frequency | - | Bidirectional Channels | 1 |
| Applications | General Purpose |
