TT8M2TR

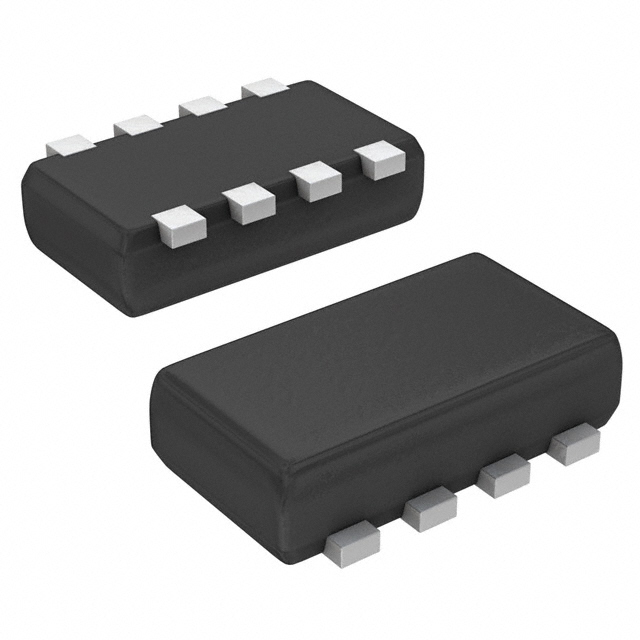

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TT8M2TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TT8M2TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TT8M2TR |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET N/P-CH 30V/20V 2.5A TSST8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.121 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TT8M2TR | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET N/P-CH 30V/20V 2.5A TSST8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160047 pcs | Data sheet | TT8M2TSMT8 TR Taping Spec |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | 8-TSST | Series | - |
| Rds On (Max) @ Id, Vgs | 90 mOhm @ 2.5A, 4.5V | Power - Max | 1.25W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Flat Lead |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 3.2nC @ 4.5V | FET Type | N and P-Channel |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 30V, 20V |
| Detailed Description | Mosfet Array N and P-Channel 30V, 20V 2.5A 1.25W Surface Mount 8-TSST | Current - Continuous Drain (Id) @ 25°C | 2.5A |
| Base Part Number | *M2 |
