SP8M5FRATB

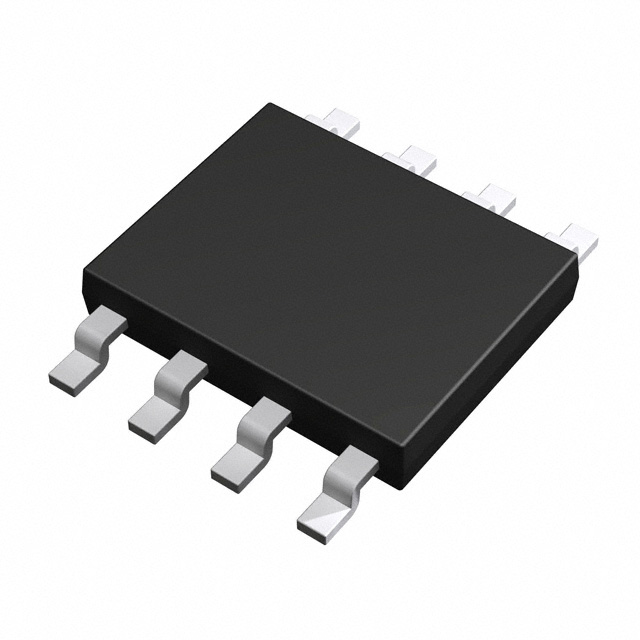

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SP8M5FRATB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SP8M5FRATB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SP8M5FRATB |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | 4V DRIVE NCH+PCH MOSFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.285 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SP8M5FRATB | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | 4V DRIVE NCH+PCH MOSFET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79888 pcs | Data sheet | SOP8 TB Taping SpecSP8M5FRA |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-SOP | Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 30 mOhm @ 6A, 10V, 28 mOhm @ 7A, 10V | Power - Max | 2W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Other Names | SP8M5FRATBTR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 520pF @ 10V, 2600pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 7.2nC @ 5V, 25nC @ 5V |
| FET Type | N and P-Channel | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array N and P-Channel 30V 6A (Ta), 7A (Ta) 2W Surface Mount 8-SOP |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 7A (Ta) |
