SML-Z14UTT86A

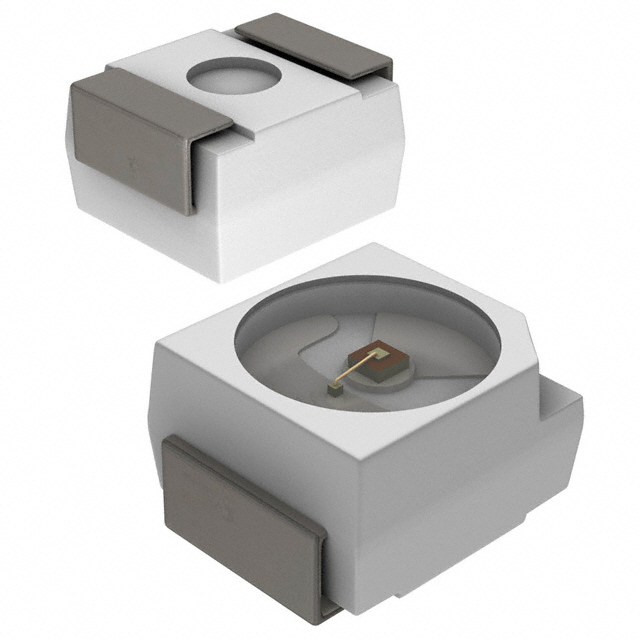

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SML-Z14UTT86A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SML-Z14UTT86A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SML-Z14UTT86A |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | LED RED CLEAR 2PLCC SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.245 | $0.192 | $0.159 | $0.137 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.12 | $0.104 | $0.082 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SML-Z14UTT86A | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED RED CLEAR 2PLCC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 232415 pcs | Data sheet | SML-Z14/ZN4x Series |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | 620nm | Voltage - Forward (Vf) (Typ) | 1.9V |
| Viewing Angle | - | Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W | Series | SML-Z1 |
| Packaging | Cut Tape (CT) | Package / Case | 2-PLCC |
| Other Names | 511-1646-1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Millicandela Rating | 224mcd |
| Lens Transparency | Clear | Lens Style/Size | Round with Flat Top, 2.40mm |
| Lens Color | Colorless | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 2.05mm | Features | - |
| Detailed Description | Red 620nm LED Indication - Discrete 1.9V 2-PLCC | Current - Test | 20mA |
| Configuration | Standard | Color | Red |
| Base Part Number | SML-Z14 |
