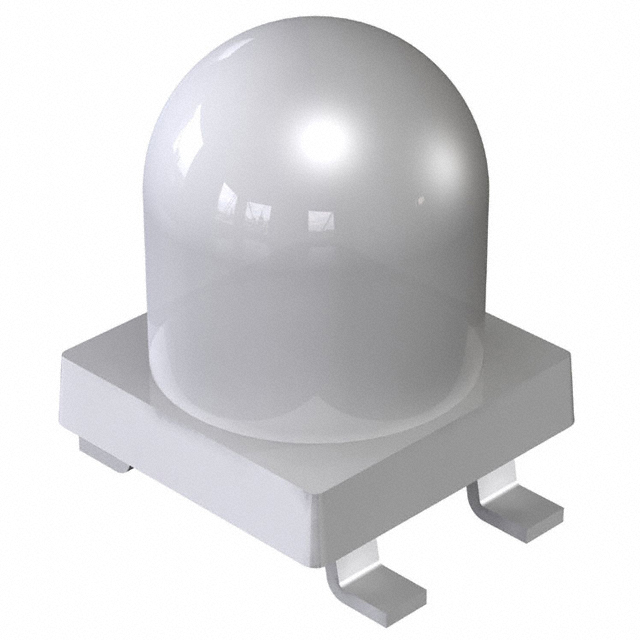

SML-J14DTT96
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SML-J14DTT96 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SML-J14DTT96 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SML-J14DTT96 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | LED ORANGE CLEAR CHIP SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SML-J14DTT96 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED ORANGE CLEAR CHIP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4047 pcs | Data sheet | SML-J14DTSML-L1/J1 Series Footprint |
| Category | Optoelectronics | Wavelength - Peak | 611nm |
| Wavelength - Dominant | - | Voltage - Forward (Vf) (Typ) | 2V |
| Viewing Angle | - | Supplier Device Package | Chip LED |
| Size / Dimension | 3.40mm L x 3.40mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Gull Wing |
| Other Names | 846-1025-2 SMLJ14DTT96 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 28000mcd |
| Lens Transparency | Clear | Lens Style/Size | Round with Domed Top |
| Lens Color | Colorless | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 4.65mm | Features | - |
| Detailed Description | Orange LED Indication - Discrete 2V 4-SMD, Gull Wing | Current - Test | 20mA |
| Configuration | Standard | Color | Orange |
| Base Part Number | SML-J14 |
