SML-D22MUWT86

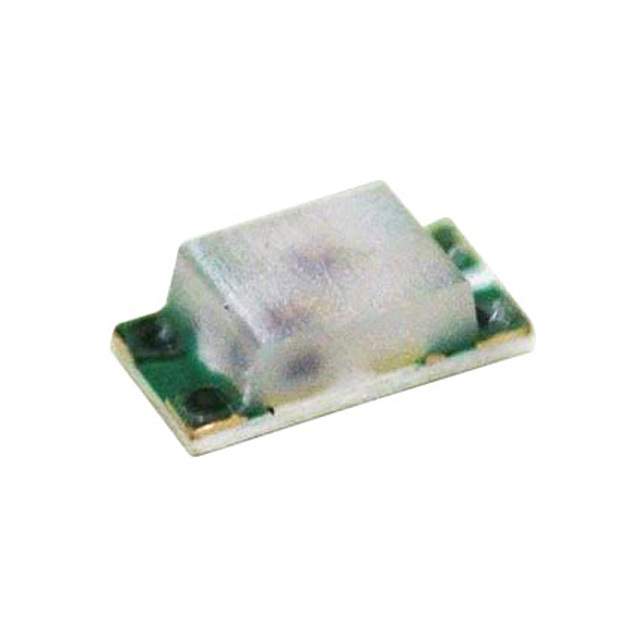

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SML-D22MUWT86 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SML-D22MUWT86 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SML-D22MUWT86 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | LED RED/YELLOW-GREEN 1608 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.053 | $0.048 | $0.045 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SML-D22MUWT86 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED RED/YELLOW-GREEN 1608 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 506970 pcs | Data sheet | SML-D22x Series |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | 620nm Red, 570nm Yellow-Green | Voltage - Forward (Vf) (Typ) | 1.9V Red, 2V Yellow-Green |
| Viewing Angle | - | Supplier Device Package | 1608 (0603) |
| Size / Dimension | 1.60mm L x 0.80mm W | Series | SML-D22 |
| Packaging | Tape & Reel (TR) | Package / Case | 0603 (1608 Metric) |
| Other Names | SML-D22MUWT86LM SML-D22MUWT86TR |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 16mcd Red, 10mcd Yellow-Green |
| Manufacturer Standard Lead Time | 10 Weeks | Lens Transparency | - |
| Lens Style/Size | Rectangle with Flat Top, 1.20mm x 0.80mm | Lens Color | White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.65mm |
| Features | - | Detailed Description | Red, Yellow-Green 620nm Red, 570nm Yellow-Green LED Indication - Discrete 1.9V Red, 2V Yellow-Green 0603 (1608 Metric) |
| Current - Test | 5mA Red, 5mA Yellow-Green | Configuration | Independent |
| Color | Red, Yellow-Green |
