SML-522MY8WT86

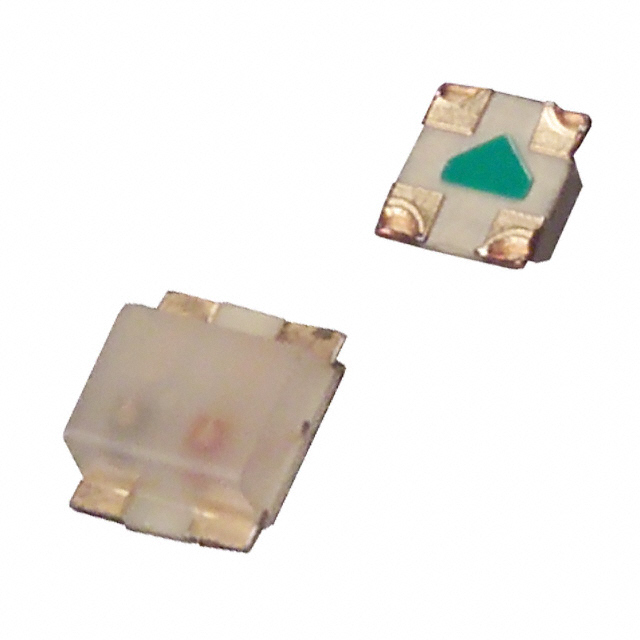

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SML-522MY8WT86 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SML-522MY8WT86 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SML-522MY8WT86 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | LED GRN/YELLOW DIFFUSED 1315 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | |||
|---|---|---|---|---|---|
| $0.058 | $0.054 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SML-522MY8WT86 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED GRN/YELLOW DIFFUSED 1315 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 445531 pcs | Data sheet | SML-522/SML522 Series |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | 572nm Green, 590nm Yellow | Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.2V Yellow |
| Viewing Angle | - | Supplier Device Package | 1315 (0605) |
| Size / Dimension | 1.50mm L x 1.30mm W | Series | SML-52 |
| Packaging | Tape & Reel (TR) | Package / Case | 0605 (1513 Metric) |
| Other Names | 846-1110-2 SML-522MY8WT86NQ SML-522MY8WT86NR SML-522MY8WT86NS SML-522MY8WT86PQ SML-522MY8WT86PR SML-522MY8WT86PS SML-522MY8WT86QQ SML-522MY8WT86QR SML-522MY8WT86QS SML522MY8WT86 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Millicandela Rating | 40mcd Green, 63mcd Yellow |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top, 1.30mm x 1.10mm |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.70mm | Features | - |
| Detailed Description | Green, Yellow 572nm Green, 590nm Yellow LED Indication - Discrete 2.2V Green, 2.2V Yellow 0605 (1513 Metric) | Current - Test | 20mA Green, 20mA Yellow |
| Configuration | Independent | Color | Green, Yellow |
| Base Part Number | SML-522 |
