Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SCS206AJTLL

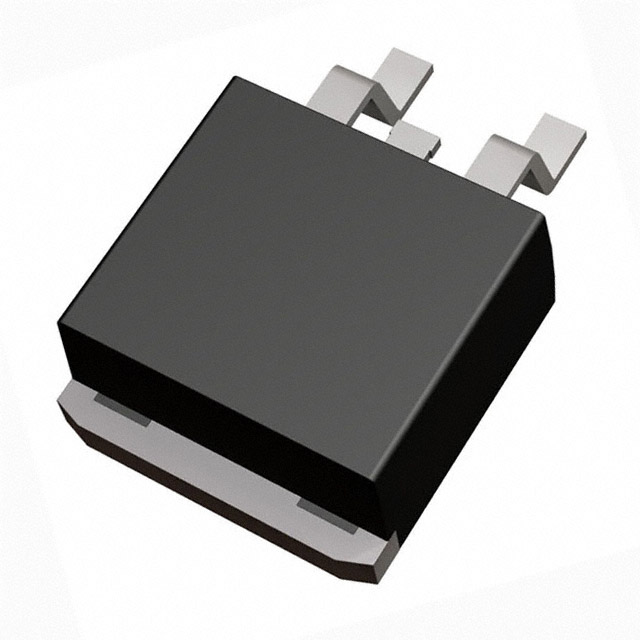

SCS206AJTLL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SCS206AJTLL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SCS206AJTLL
Manufacturer	LAPIS Semiconductor
Description	DIODE SCHOTTKY 650V 6A TO263AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 51704 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$1.249	$1.116	$1.005
	$0.915	$0.826	$0.741

Product parameter
Data sheet

Product parameter

Part Number	SCS206AJTLL	Manufacturer	LAPIS Semiconductor
Description	DIODE SCHOTTKY 650V 6A TO263AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51704 pcs	Data sheet	SCS206AJ SiC Power Devices Catalog TO-263AB (LPTL) Taping Spec Schottky Barrier Diode Part No. Explanation
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.55V @ 6A
Voltage - DC Reverse (Vr) (Max)	650V	Supplier Device Package	TO-263AB
Speed	No Recovery Time > 500mA (Io)	Series	-
Reverse Recovery Time (trr)	0ns	Packaging	Original-Reel®
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Other Names	SCS206AJTLLDKR
Operating Temperature - Junction	175°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Silicon Carbide Schottky
Detailed Description	Diode Silicon Carbide Schottky 650V 6A (DC) Surface Mount TO-263AB	Current - Reverse Leakage @ Vr	120µA @ 600V
Current - Average Rectified (Io)	6A (DC)	Capacitance @ Vr, F	219pF @ 1V, 1MHz
Base Part Number	SCS206
