RSY160P05TL

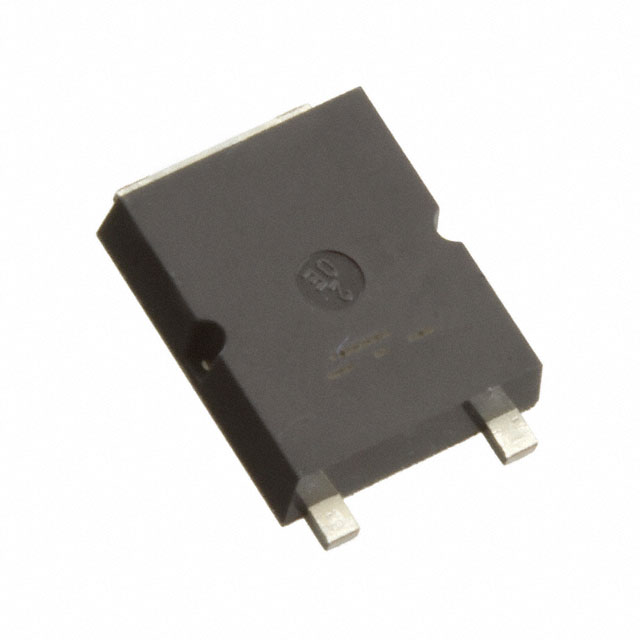

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RSY160P05TL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RSY160P05TL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RSY160P05TL |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET P-CH 45V 16A TCPT3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.256 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RSY160P05TL | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 45V 16A TCPT3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85150 pcs | Data sheet | RSY160P05 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TCPT3 | Series | - |
| Rds On (Max) @ Id, Vgs | 50 mOhm @ 16A, 10V | Power Dissipation (Max) | 20W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 3-SMD, Flat Leads |
| Other Names | RSY160P05TLTR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2150pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 25.5nC @ 5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Drain to Source Voltage (Vdss) | 45V | Detailed Description | P-Channel 45V 16A (Ta) 20W (Tc) Surface Mount TCPT3 |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta) |
