RSF015N06FRATL

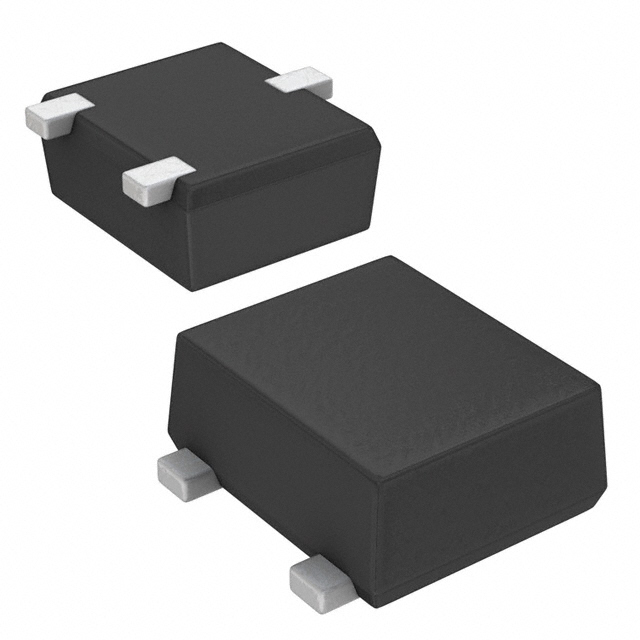

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RSF015N06FRATL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RSF015N06FRATL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RSF015N06FRATL |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | NCH 60V 1.5A POWER MOSFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.169 | $0.133 | $0.091 | $0.063 | $0.047 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RSF015N06FRATL | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | NCH 60V 1.5A POWER MOSFET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 407382 pcs | Data sheet | RSF015N06FRATUMT3 TL Taping Spec |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TUMT3 | Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 290 mOhm @ 1.5A, 10V | Power Dissipation (Max) | 800mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 3-SMD, Flat Leads |
| Other Names | RSF015N06FRATLCT | Operating Temperature | 150°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 110pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 2nC @ 5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | N-Channel 60V 1.5A (Ta) 800mW (Ta) Surface Mount TUMT3 | Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) |
