Home > Products > Circuit Protection > TVS - Diodes > RSA12MGTR

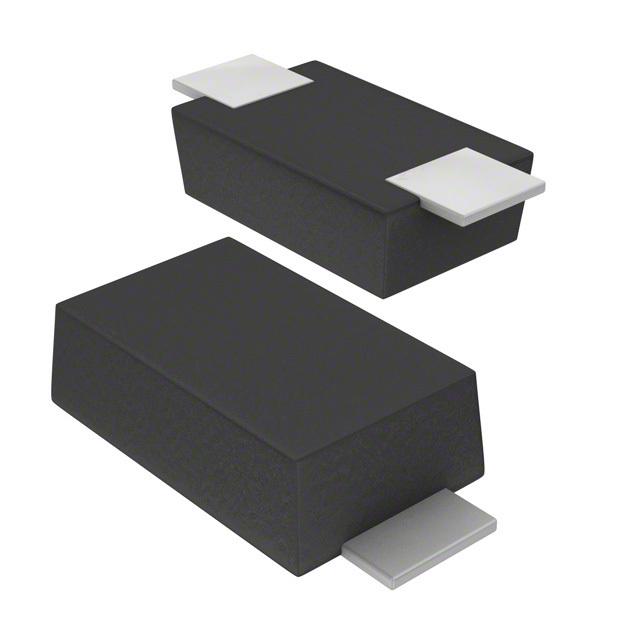

RSA12MGTR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RSA12MGTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RSA12MGTR
Manufacturer	LAPIS Semiconductor
Description	TVS DIODE 12V 19.9V SOD123
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 367657 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.053

Product parameter
Data sheet

Product parameter

Part Number	RSA12MGTR	Manufacturer	LAPIS Semiconductor
Description	TVS DIODE 12V 19.9V SOD123	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	367657 pcs	Data sheet	RSA12M
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	12V
Voltage - Clamping (Max) @ Ipp	19.9V	Voltage - Breakdown (Min)	13.3V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	SOD-123	Series	-
Power Line Protection	No	Power - Peak Pulse	200W
Packaging	Tape & Reel (TR)	Package / Case	SOD-123
Operating Temperature	-	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	10.1A (8/20µs)	Capacitance @ Frequency	-
Base Part Number	RSA12	Applications	General Purpose
