RQ1C075UNTR

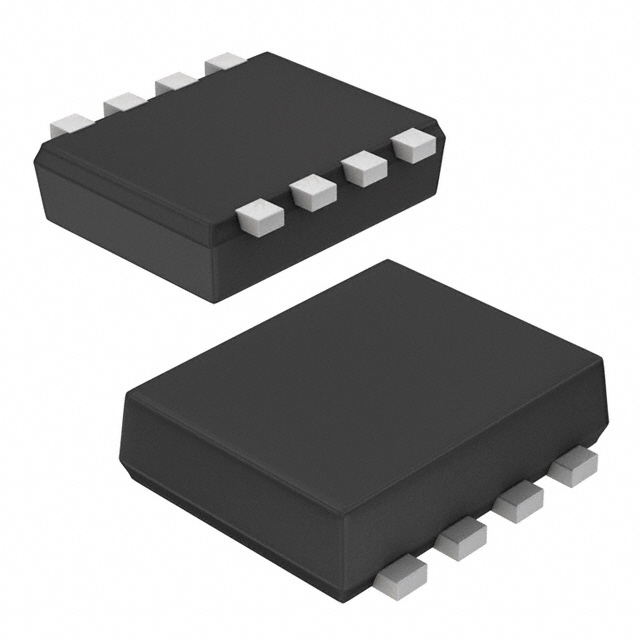

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RQ1C075UNTR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RQ1C075UNTR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RQ1C075UNTR |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET N-CH 20V 7.5A TSMT8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.271 | $0.237 | $0.183 | $0.135 | $0.108 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RQ1C075UNTR | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 20V 7.5A TSMT8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 175793 pcs | Data sheet | TSMT8 TR Taping SpecRQ1C075UN |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 1mA |
| Vgs (Max) | ±10V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TSMT8 | Series | - |
| Rds On (Max) @ Id, Vgs | 16 mOhm @ 7.5A, 4.5V | Power Dissipation (Max) | 700mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 8-SMD, Flat Lead |
| Other Names | RQ1C075UNCT RQ1C075UNTRCT RQ1C075UNTRCT-ND |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 7.5A (Ta) 700mW (Ta) Surface Mount TSMT8 |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Ta) |
