Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > RGPR10BM40FHTL

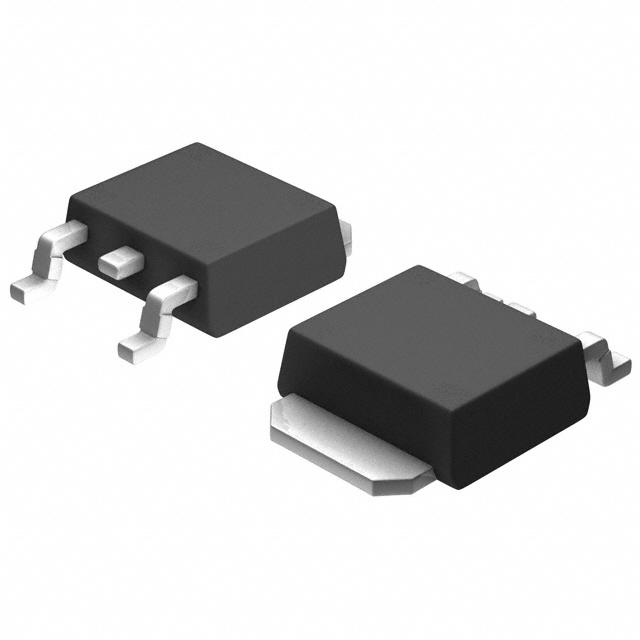

RGPR10BM40FHTL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RGPR10BM40FHTL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RGPR10BM40FHTL
Manufacturer	LAPIS Semiconductor
Description	IGBT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 82649 pcs
Reference Price (In US Dollars)	2500 pcs
Reference Price (In US Dollars)	$0.267

Product parameter
Data sheet

Product parameter

Part Number	RGPR10BM40FHTL	Manufacturer	LAPIS Semiconductor
Description	IGBT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	82649 pcs	Data sheet	RGPR10BM40FH Datasheet RGPR10BM40FH TO-252 IGBT Taping Spec
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	460V
Vce(on) (Max) @ Vge, Ic	2.0V @ 5V, 10A	Test Condition	300V, 8A, 100 Ohm, 5V
Td (on/off) @ 25°C	500ns/4µs	Switching Energy	-
Supplier Device Package	TO-252	Series	Automotive, AEC-Q101
Power - Max	107W	Packaging	Tape & Reel (TR)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63	Other Names	RGPR10BM40FHTLTR
Operating Temperature	-40°C ~ 75°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	-	Gate Charge	14nC
Detailed Description	IGBT 460V 20A 107W Surface Mount TO-252	Current - Collector (Ic) (Max)	20A
