Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > RF2001NS3DFHTL

RF2001NS3DFHTL

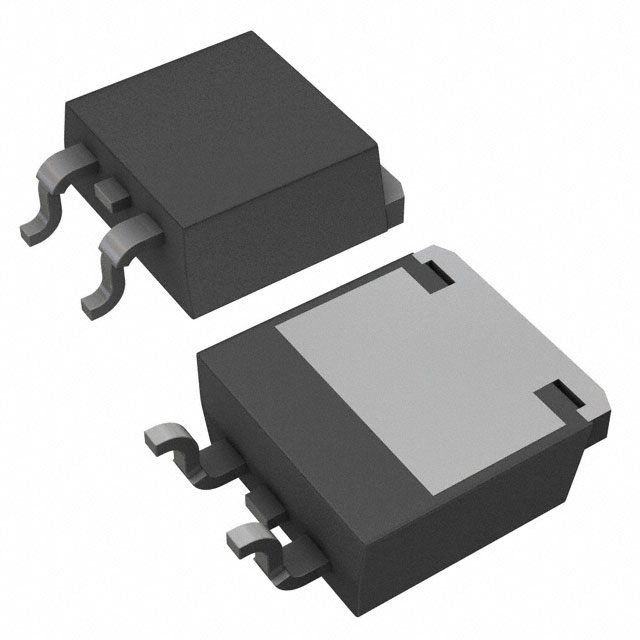

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RF2001NS3DFHTL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RF2001NS3DFHTL
Manufacturer	LAPIS Semiconductor
Description	FAST RECOVERY DIODES (CORRESPOND
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 60742 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.34

Product parameter
Data sheet

Product parameter

Part Number	RF2001NS3DFHTL	Manufacturer	LAPIS Semiconductor
Description	FAST RECOVERY DIODES (CORRESPOND	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60742 pcs	Data sheet	TO263S TL Taping Spec RF2001NS3DFH
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.3V @ 10A
Voltage - DC Reverse (Vr) (Max)	300V	Supplier Device Package	LPDS
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Reverse Recovery Time (trr)	25ns	Packaging	Tape & Reel (TR)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Other Names	RF2001NS3DFHTLTR
Operating Temperature - Junction	150°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Standard 300V 20A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Current - Reverse Leakage @ Vr	10µA @ 300V	Current - Average Rectified (Io) (per Diode)	20A
