Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Arrays > QSZ1TR

QSZ1TR

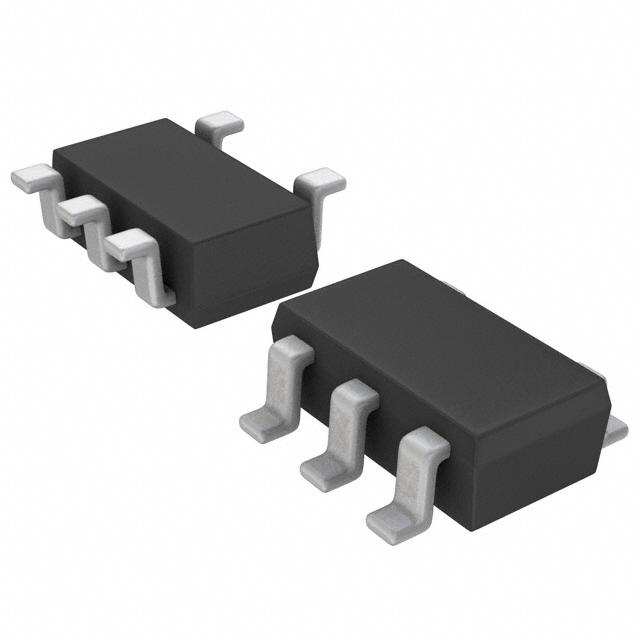

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QSZ1TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	QSZ1TR
Manufacturer	LAPIS Semiconductor
Description	TRANS NPN/PNP 15V 2A 5TSMT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 251831 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.075

Product parameter

Product parameter

Part Number	QSZ1TR	Manufacturer	LAPIS Semiconductor
Description	TRANS NPN/PNP 15V 2A 5TSMT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	251831 pcs	Data sheet
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	15V
Vce Saturation (Max) @ Ib, Ic	180mV @ 50mA, 1A	Transistor Type	NPN, PNP (Emitter Coupled)
Supplier Device Package	TSMT5	Series	-
Power - Max	500mW	Packaging	Tape & Reel (TR)
Package / Case	SOT-23-5 Thin, TSOT-23-5	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	360MHz
Detailed Description	Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 15V 2A 360MHz 500mW Surface Mount TSMT5	DC Current Gain (hFE) (Min) @ Ic, Vce	270 @ 200mA, 2V
Current - Collector Cutoff (Max)	100nA (ICBO)	Current - Collector (Ic) (Max)	2A
