QS6M3TR

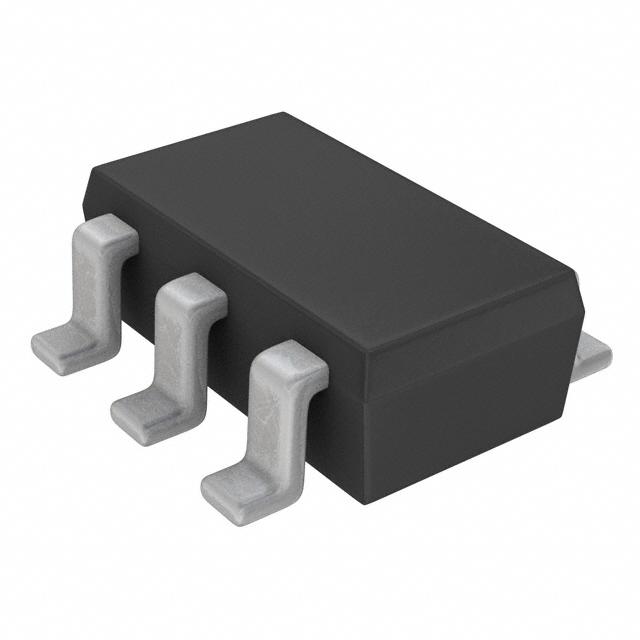

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QS6M3TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QS6M3TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QS6M3TR |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | MOSFET N/P-CH 30V/20V 1.5A TSMT6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.076 | |||||
- Product parameter
Product parameter
| Part Number | QS6M3TR | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET N/P-CH 30V/20V 1.5A TSMT6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 284114 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | TSMT6 (SC-95) | Series | - |
| Rds On (Max) @ Id, Vgs | 230 mOhm @ 1.5A, 4.5V | Power - Max | 1.25W |
| Packaging | Tape & Reel (TR) | Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 80pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 1.6nC @ 4.5V |
| FET Type | N and P-Channel | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V, 20V | Detailed Description | Mosfet Array N and P-Channel 30V, 20V 1.5A 1.25W Surface Mount TSMT6 (SC-95) |
| Current - Continuous Drain (Id) @ 25°C | 1.5A | Base Part Number | *M3 |
