Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > EDZTE6118B

EDZTE6118B

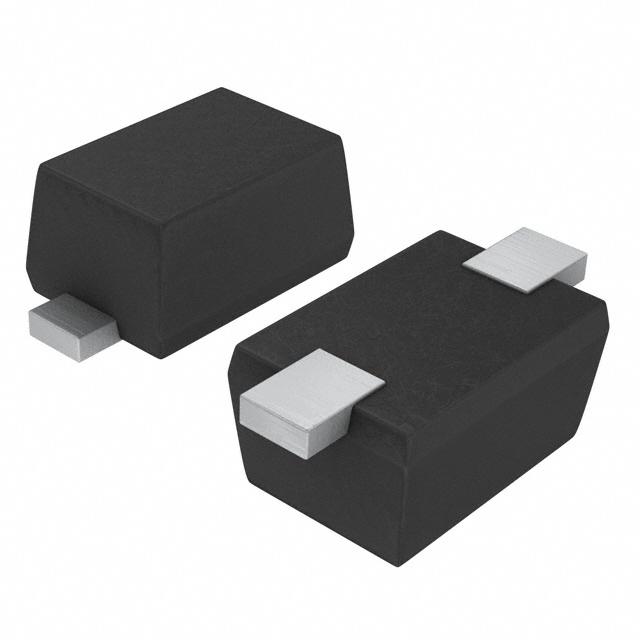

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDZTE6118B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EDZTE6118B
Manufacturer	LAPIS Semiconductor
Description	DIODE ZENER 18V 150MW EMD2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 668474 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$0.183	$0.132	$0.103	$0.078
	$0.055	$0.044	$0.034

Product parameter
Data sheet

Product parameter

Part Number	EDZTE6118B	Manufacturer	LAPIS Semiconductor
Description	DIODE ZENER 18V 150MW EMD2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	668474 pcs	Data sheet	EDZ18B
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	18V
Tolerance	±2%	Supplier Device Package	EMD2
Series	-	Power - Max	150mW
Packaging	Cut Tape (CT)	Package / Case	SC-79, SOD-523
Other Names	EDZTE6118BCT	Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance (Max) (Zzt)	65 Ohms
Detailed Description	Zener Diode 18V 150mW ±2% Surface Mount EMD2	Current - Reverse Leakage @ Vr	100nA @ 13V
Base Part Number	EDZ18
