BP5801

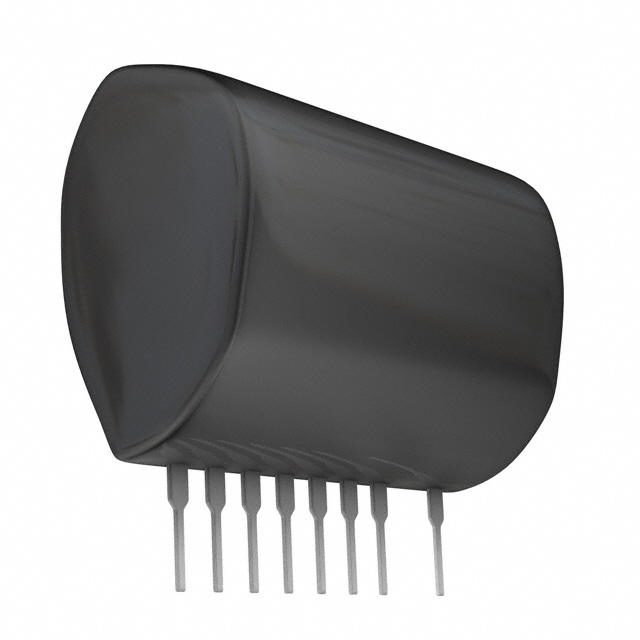

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BP5801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BP5801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BP5801 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | IC MOTOR DRIVER PWM 9SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BP5801 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DRIVER PWM 9SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4398 pcs | Data sheet | BP5801 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 12 V ~ 15 V |
| Voltage - Load | 11 V ~ 13 V | Technology | Bipolar |
| Supplier Device Package | 9-SIP | Step Resolution | - |
| Series | - | Packaging | Tray |
| Package / Case | 9-SIP, 8 Leads | Output Configuration | Low Side |
| Operating Temperature | -10°C ~ 60°C (TA) | Mounting Type | Through Hole |
| Motor Type - Stepper | - | Motor Type - AC, DC | Brushed DC |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Analog, PWM | Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver Bipolar Analog, PWM 9-SIP | Current - Output | 400mA |
| Base Part Number | BP5801 | Applications | General Purpose |
