Home > Products > Discrete Semiconductor Products > Power Driver Modules > BM63764S-VC

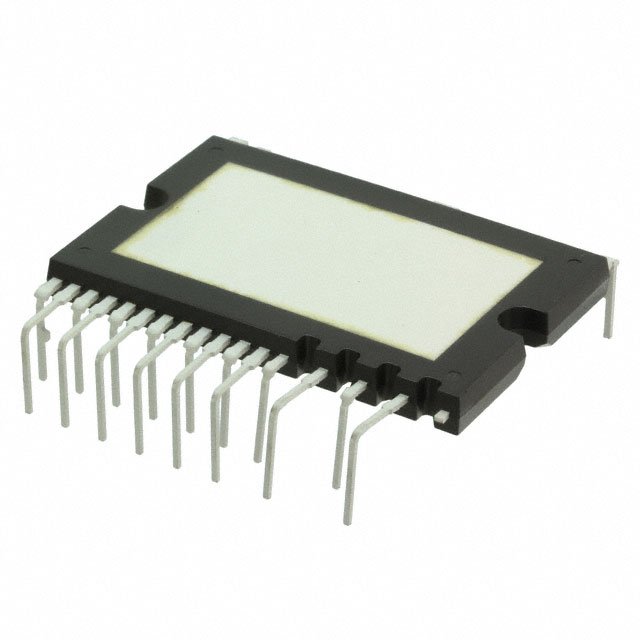

BM63764S-VC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM63764S-VC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BM63764S-VC
Manufacturer	LAPIS Semiconductor
Description	IC IPM 600V IGBT SW 25HSDIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6959 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$7.348	$6.798	$6.247
	$5.806	$5.328	$5.145

Product parameter
Data sheet

Product parameter

Part Number	BM63764S-VC	Manufacturer	LAPIS Semiconductor
Description	IC IPM 600V IGBT SW 25HSDIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6959 pcs	Data sheet	BM63764S-(VA, VC)
Category	Discrete Semiconductor Products	Voltage - Isolation	1500Vrms
Voltage	600V	Type	IGBT
Series	-	Package / Case	25-PowerDIP Module (1.327", 33.70mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Power Driver Module IGBT 3 Phase Inverter 600V 15A 25-PowerDIP Module (1.327", 33.70mm)
Current	15A	Configuration	3 Phase Inverter
