Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > BD9A100MUV-EVK-001

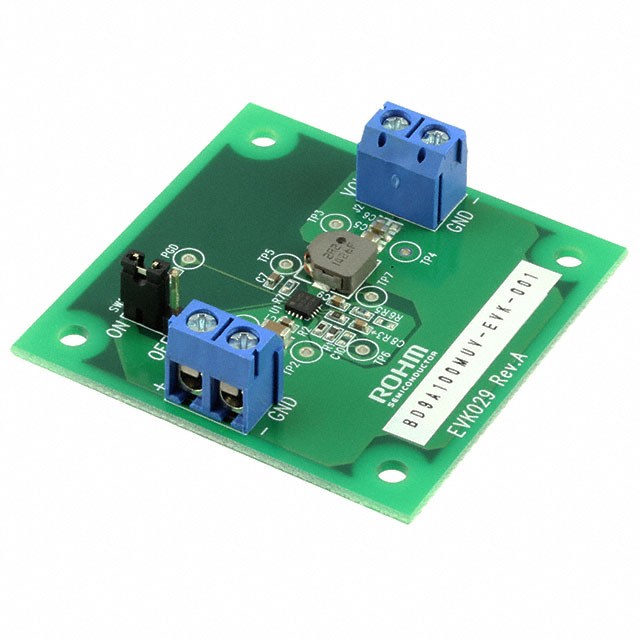

BD9A100MUV-EVK-001

BD9A100MUV-EVK-001

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD9A100MUV-EVK-001 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BD9A100MUV-EVK-001
Manufacturer	LAPIS Semiconductor
Description	EVAL BOARD BD9A100MUV
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1915 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.635

Product parameter
Data sheet

Product parameter

Part Number	BD9A100MUV-EVK-001	Manufacturer	LAPIS Semiconductor
Description	EVAL BOARD BD9A100MUV	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1915 pcs	Data sheet	BD9A100MUV
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	2.7 V ~ 5.5 V	Utilized IC / Part	BD9A100
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	1MHz	Detailed Description	BD9A100 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	1A	Board Type	Fully Populated
