Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - DC DC Switching Regula > BD9035AEFV-CE2

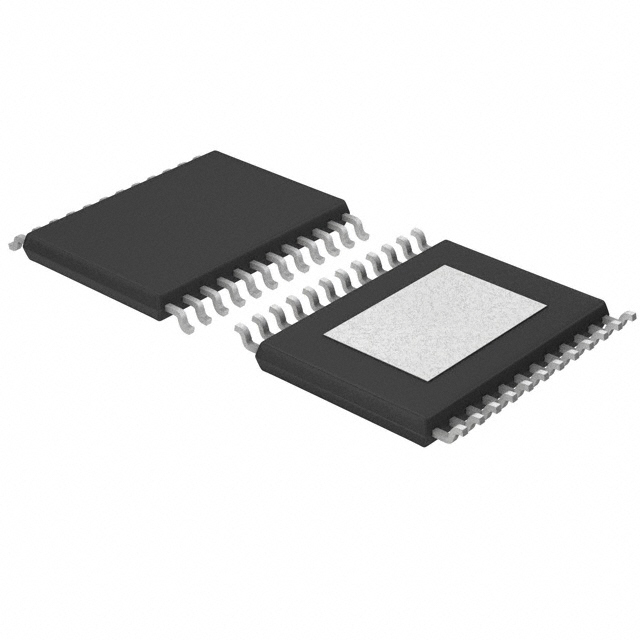

BD9035AEFV-CE2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD9035AEFV-CE2 with confidence from Components-World.HK, 1 Year Warranty

Dowload BD9035AEFV-CE2 Details in PDF

Request a Quote

Part Number	BD9035AEFV-CE2
Manufacturer	LAPIS Semiconductor
Description	AUTOMATICALLY CONTROLLED BUCK-BO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 48740 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.776

Product parameter
Data sheet

Product parameter

Part Number	BD9035AEFV-CE2	Manufacturer	LAPIS Semiconductor
Description	AUTOMATICALLY CONTROLLED BUCK-BO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48740 pcs	Data sheet	HTSSOP-B24 Taping Spec BD9035AEFV-C
Category	Integrated Circuits (ICs)	Voltage - Output (Min/Fixed)	3.5V, 5V
Voltage - Output (Max)	-	Voltage - Input (Min)	3.8V
Voltage - Input (Max)	38V	Topology	Buck-Boost
Synchronous Rectifier	No	Supplier Device Package	24-HTSSOP-B
Series	Automotive, AEC-Q100	Packaging	Tape & Reel (TR)
Package / Case	24-VSSOP (0.220", 5.60mm Width) Exposed Pad	Output Type	Fixed
Output Configuration	Positive	Other Names	BD9035AEFV-CE2TR
Operating Temperature	-40°C ~ 125°C (TA)	Number of Outputs	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Up/Step-Down	Frequency - Switching	100kHz ~ 600kHz
Detailed Description	Buck-Boost Switching Regulator IC Positive Fixed 3.5V, 5V 1 Output 15mA 24-VSSOP (0.220", 5.60mm Width) Exposed Pad	Current - Output	15mA
