Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > BD70522GUL-EVK-101

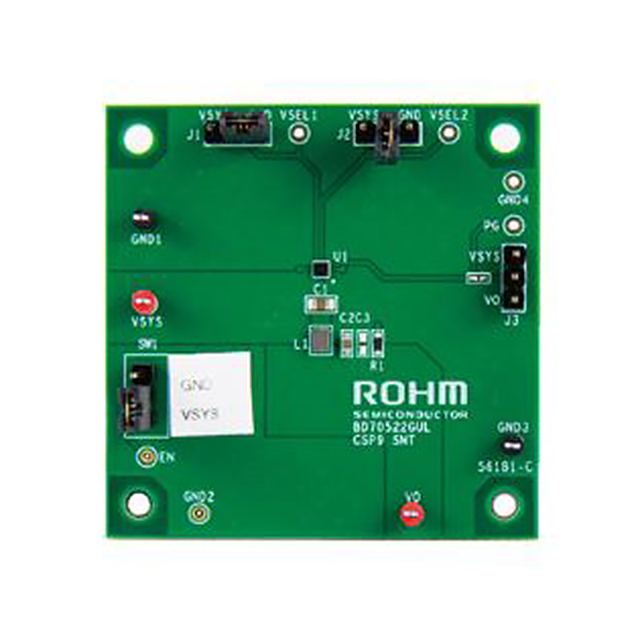

BD70522GUL-EVK-101

BD70522GUL-EVK-101

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD70522GUL-EVK-101 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BD70522GUL-EVK-101
Manufacturer	LAPIS Semiconductor
Description	EVAL BOARD FOR THE BD70522GUL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2129 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.569

Product parameter
Data sheet

Product parameter

Part Number	BD70522GUL-EVK-101	Manufacturer	LAPIS Semiconductor
Description	EVAL BOARD FOR THE BD70522GUL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2129 pcs	Data sheet	BD70522GUL-EVK-101 User Guide BD70522GUL Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	1.2 V ~ 3.3 V
Voltage - Input	2.5 V ~ 5.5 V	Utilized IC / Part	BD70522
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	BD70522 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	500mA	Board Type	Fully Populated
