BD6066EKN-E2

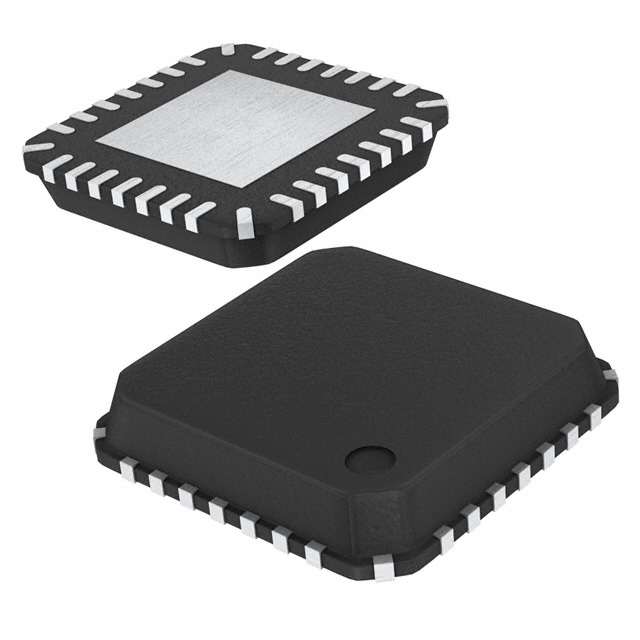

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD6066EKN-E2 with confidence from Components-World.HK, 1 Year Warranty
Dowload BD6066EKN-E2 Details in PDFSee Product Specifications for product details.
Buy BD6066EKN-E2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BD6066EKN-E2 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | IC LED DRIVER CTRLR DIM 28HQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.431 | $2.187 | $1.993 | $1.798 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.652 | $1.507 | $1.361 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BD6066EKN-E2 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | IC LED DRIVER CTRLR DIM 28HQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23685 pcs | Data sheet | BD6066GU |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 22V | Voltage - Output | 40.5V |
| Type | DC DC Controller | Topology | Step-Up (Boost) |
| Supplier Device Package | 28-HQFN | Series | - |
| Packaging | Original-Reel® | Package / Case | 28-VFQFN Exposed Pad |
| Other Names | BD6066EKN-E2DKR | Operating Temperature | -30°C ~ 85°C (TA) |
| Number of Outputs | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | No |
| Frequency | 1MHz | Dimming | PWM |
| Detailed Description | LED Driver IC 4 Output DC DC Controller Step-Up (Boost) PWM Dimming 30mA 28-HQFN | Current - Output / Channel | 30mA |
| Base Part Number | BD606* | Applications | Backlight |
