Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - Linear > BA7824CP-E2

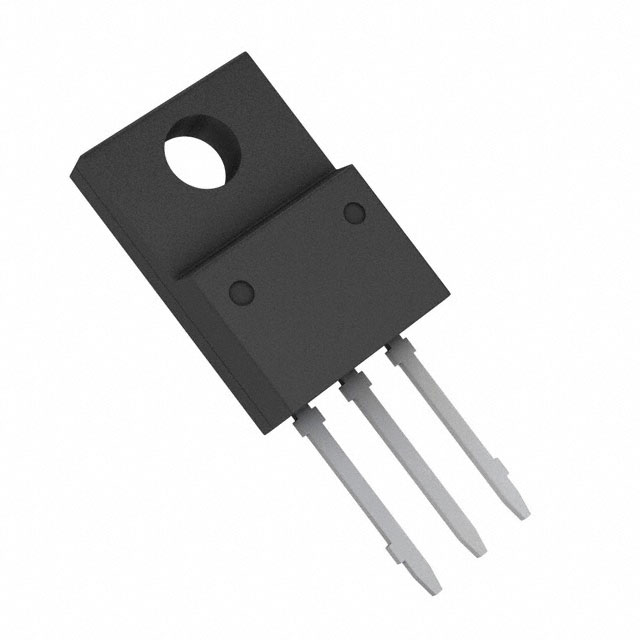

BA7824CP-E2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BA7824CP-E2 with confidence from Components-World.HK, 1 Year Warranty

Dowload BA7824CP-E2 Details in PDF

Request a Quote

Part Number	BA7824CP-E2
Manufacturer	LAPIS Semiconductor
Description	IC REG LINEAR 24V 1A TO220CP-3
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 116174 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.164

Product parameter
Data sheet

Product parameter

Part Number	BA7824CP-E2	Manufacturer	LAPIS Semiconductor
Description	IC REG LINEAR 24V 1A TO220CP-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	116174 pcs	Data sheet	TO220CP-3 Taping Spec BA78(M)xx Series
Category	Integrated Circuits (ICs)	Voltage Dropout (Max)	2V @ 1A (Typ)
Voltage - Output (Min/Fixed)	24V	Voltage - Output (Max)	-
Voltage - Input (Max)	33V	Supplier Device Package	TO-220CP-3
Series	-	Protection Features	Over Current, Over Temperature
Packaging	Tape & Reel (TR)	Package / Case	TO-220-3 Cropped Leads
PSRR	58dB (120Hz)	Output Type	Fixed
Output Configuration	Positive	Other Names	BA7824CP-E2TR BA7824CPE2
Operating Temperature	-40°C ~ 85°C	Number of Regulators	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 24V 1A TO-220CP-3	Current - Supply (Max)	6mA
Current - Quiescent (Iq)	4.5mA	Current - Output	1A
Control Features	-	Base Part Number	BA78
