Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - DC DC Switching Regula > BA6161N

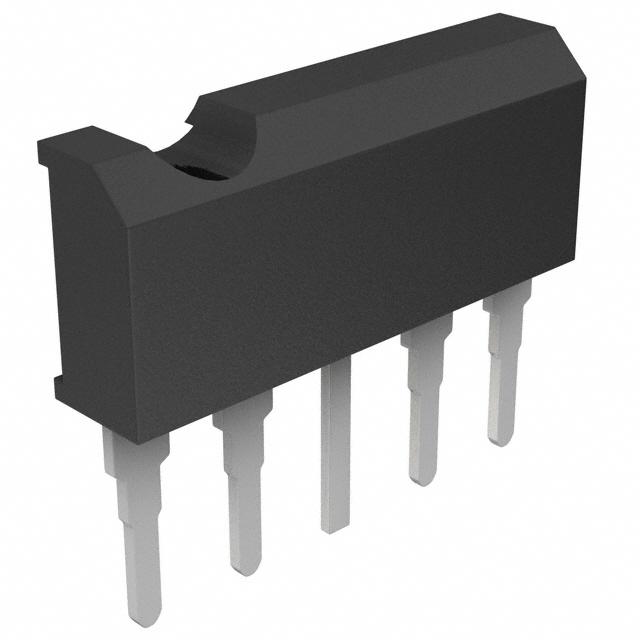

BA6161N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BA6161N with confidence from Components-World.HK, 1 Year Warranty

Dowload BA6161N Details in PDF

Request a Quote

Part Number	BA6161N
Manufacturer	LAPIS Semiconductor
Description	IC REG BOOST ADJ 3MA SIP5
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 76590 pcs
Reference Price (In US Dollars)	1500 pcs
Reference Price (In US Dollars)	$0.402

Product parameter
Data sheet

Product parameter

Part Number	BA6161N	Manufacturer	LAPIS Semiconductor
Description	IC REG BOOST ADJ 3MA SIP5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76590 pcs	Data sheet	BA6161N/F
Category	Integrated Circuits (ICs)	Voltage - Output (Min/Fixed)	30V
Voltage - Output (Max)	35V	Voltage - Input (Min)	3V
Voltage - Input (Max)	16V	Topology	Boost
Synchronous Rectifier	No	Supplier Device Package	5-SIP
Series	-	Packaging	Tube
Package / Case	5-SIP	Output Type	Adjustable
Output Configuration	Positive	Operating Temperature	-20°C ~ 75°C (TA)
Number of Outputs	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Up	Frequency - Switching	100kHz
Detailed Description	Boost Switching Regulator IC Positive Adjustable 30V 1 Output 3mA 5-SIP	Current - Output	3mA
Base Part Number	BA6161
