Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > 2SC4505T100Q

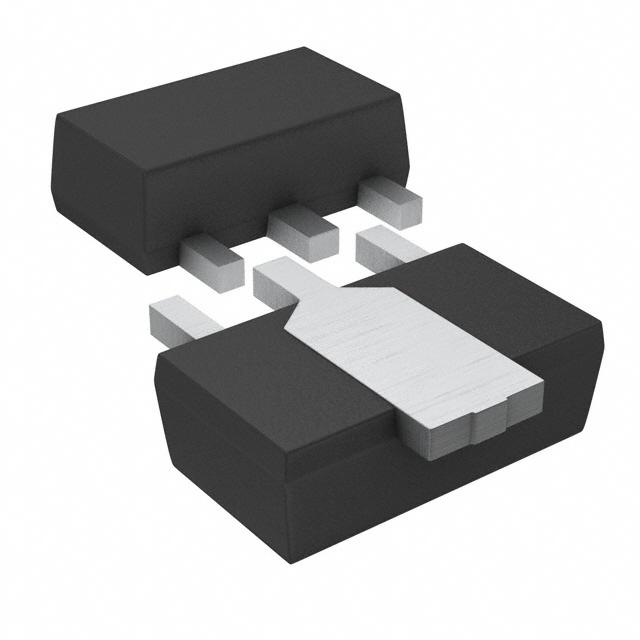

2SC4505T100Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC4505T100Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2SC4505T100Q
Manufacturer	LAPIS Semiconductor
Description	TRANS NPN 400V 0.1A SOT-89
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 159651 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.129

Product parameter
Data sheet

Product parameter

Part Number	2SC4505T100Q	Manufacturer	LAPIS Semiconductor
Description	TRANS NPN 400V 0.1A SOT-89	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	159651 pcs	Data sheet	2SC4505
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	400V
Vce Saturation (Max) @ Ib, Ic	500mV @ 1mA, 10mA	Transistor Type	NPN
Supplier Device Package	MPT3	Series	-
Power - Max	2W	Packaging	Tape & Reel (TR)
Package / Case	TO-243AA	Other Names	2SC4505T100Q-ND 2SC4505T100QTR
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	20MHz	Detailed Description	Bipolar (BJT) Transistor NPN 400V 100mA 20MHz 2W Surface Mount MPT3
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 10mA, 10V	Current - Collector Cutoff (Max)	10µA (ICBO)
Current - Collector (Ic) (Max)	100mA	Base Part Number	2SC4505
