Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > 2SAR554RTL

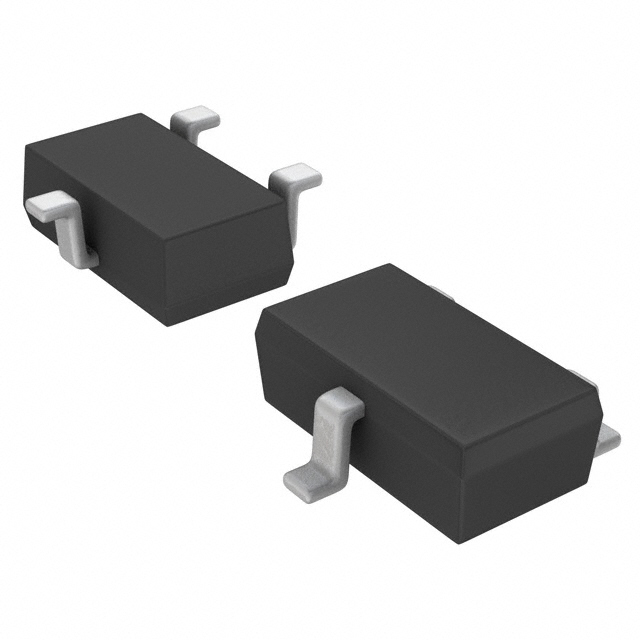

2SAR554RTL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SAR554RTL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2SAR554RTL
Manufacturer	LAPIS Semiconductor
Description	TRANS PNP 80V 1.5A TSMT3
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 246938 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.084

Product parameter
Data sheet

Product parameter

Part Number	2SAR554RTL	Manufacturer	LAPIS Semiconductor
Description	TRANS PNP 80V 1.5A TSMT3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	246938 pcs	Data sheet	2SAR554R TSMT3 TL Taping Spec
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	400mV @ 25mA, 500mA	Transistor Type	PNP
Supplier Device Package	TSMT3	Series	-
Power - Max	1W	Packaging	Tape & Reel (TR)
Package / Case	SC-96	Other Names	2SAR554RTLTR
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	340MHz	Detailed Description	Bipolar (BJT) Transistor PNP 80V 1.5A 340MHz 1W Surface Mount TSMT3
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 100mA, 3V	Current - Collector Cutoff (Max)	1µA (ICBO)
Current - Collector (Ic) (Max)	1.5A
