ED-29689-000

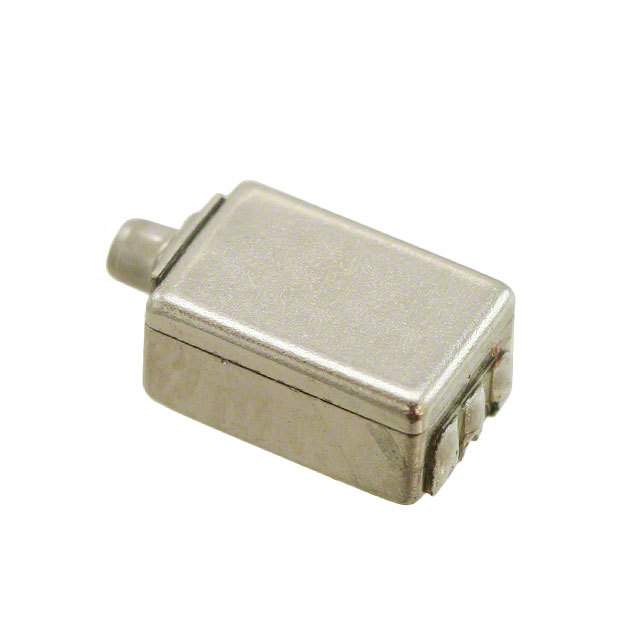

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED-29689-000 with confidence from Components-World.HK, 1 Year Warranty
Dowload ED-29689-000 Details in PDFSee Product Specifications for product details.
Buy ED-29689-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED-29689-000 |
|---|---|
| Manufacturer | Knowles |
| Description | SPEAKER 7.1OHM SIDE PORT RECT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $9.363 | $7.449 | $6.795 | $6.342 | $6.292 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ED-29689-000 | Manufacturer | Knowles |
|---|---|---|---|
| Description | SPEAKER 7.1OHM SIDE PORT RECT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5665 pcs | Data sheet | ED-29689-000 Drawing |
| Category | Audio Products | Type | Receiver |
| Termination | Solder Pads | Technology | Magnetic |
| Size / Dimension | 0.248" L x 0.169" W (6.30mm x 4.29mm) | Shape | Rectangular |
| Series | ED | Ratings | - |
| Port Location | Top | Packaging | Bulk |
| Other Names | 423-1157 ED-29689 ED-29689-000-ND ED-9689 ED-9689-ND ED29689000 Q1942308A |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Magnet | - | Material - Cone | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Impedance | 10.2 Ohms |
| Height - Seated (Max) | 0.248" (6.30mm) | Frequency Range | 200Hz ~ 5kHz |
| Frequency - Self Resonant | - | Efficiency - dBA | 106.00 |
| Efficiency - Type | Sensitivity | Efficiency - Testing | - |
| Detailed Description | 10.2 Ohms Receiver Speaker 200Hz ~ 5kHz Top Rectangular |
