AM2520EC09

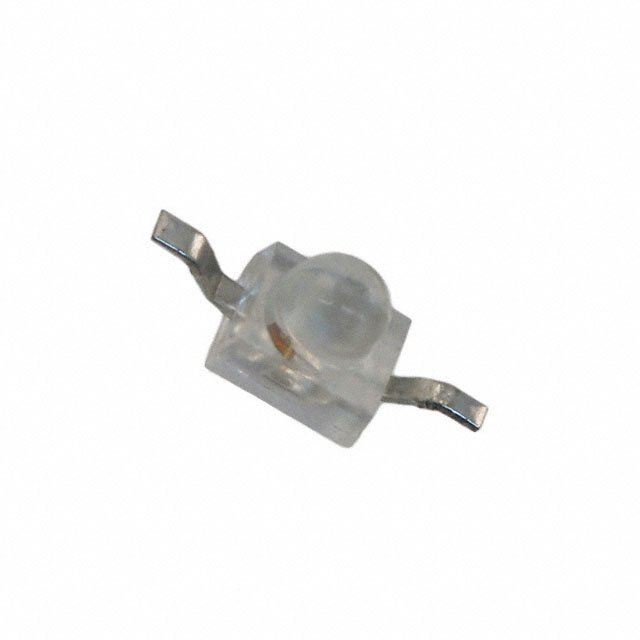

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AM2520EC09 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AM2520EC09 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AM2520EC09 |
|---|---|
| Manufacturer | Kingbright |
| Description | LED RED CLEAR SMD BOTTOM ENTRY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.054 | $0.05 | $0.045 | |||
| 10000 pcs | 25000 pcs | 50000 pcs | |||
| $0.042 | $0.041 | $0.039 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AM2520EC09 | Manufacturer | Kingbright |
|---|---|---|---|
| Description | LED RED CLEAR SMD BOTTOM ENTRY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 574662 pcs | Data sheet | AM2520EC09 |
| Category | Optoelectronics | Wavelength - Peak | 627nm |
| Wavelength - Dominant | 617nm | Voltage - Forward (Vf) (Typ) | 2V |
| Viewing Angle | 20° | Supplier Device Package | SMD |
| Size / Dimension | 2.50mm L x 2.00mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 2-SMD, Z-Bend |
| Other Names | 754-1409-2 | Mounting Type | Surface Mount, Bottom Entry |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 50mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Round with Domed Top, 1.90mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.90mm |
| Features | - | Detailed Description | Red 617nm LED Indication - Discrete 2V 2-SMD, Z-Bend |
| Current - Test | 20mA | Configuration | Standard |
| Color | Red |
