AM23ESGW

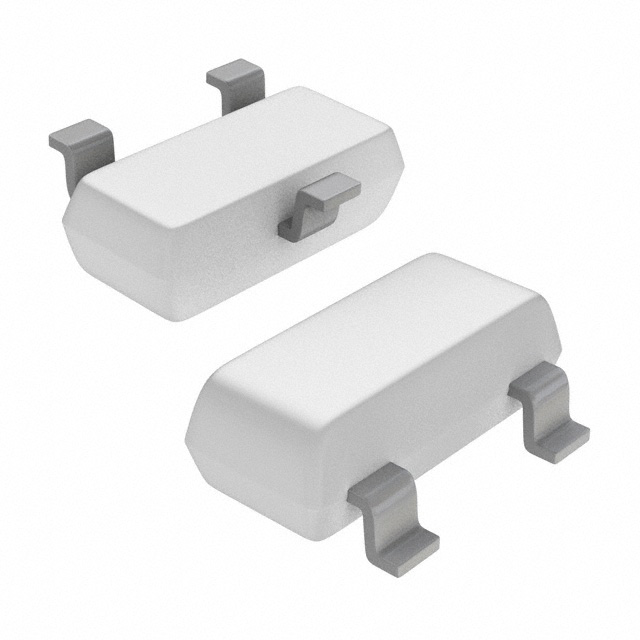

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AM23ESGW with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AM23ESGW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AM23ESGW |
|---|---|
| Manufacturer | Kingbright |
| Description | LED GRN/RED DIFFUSED SOT23-3 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.235 | $0.182 | $0.152 | $0.131 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.117 | $0.10 | $0.078 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AM23ESGW | Manufacturer | Kingbright |
|---|---|---|---|
| Description | LED GRN/RED DIFFUSED SOT23-3 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 271955 pcs | Data sheet | AM23ESGW |
| Category | Optoelectronics | Wavelength - Peak | 565nm Green, 627nm Red |
| Wavelength - Dominant | 568nm Green, 617nm Red | Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Viewing Angle | 140° | Supplier Device Package | SOT-23-3 |
| Size / Dimension | 3.00mm L x 1.30mm W | Series | - |
| Packaging | Cut Tape (CT) | Package / Case | 3-SMD, SOT-23-3 Variant |
| Other Names | 754-1634-1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 9mcd Green, 5mcd Red |
| Manufacturer Standard Lead Time | 9 Weeks | Lens Transparency | Diffused |
| Lens Style/Size | Rectangle with Flat Top, 3.00mm x 1.30mm | Lens Color | White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 1.20mm |
| Features | - | Detailed Description | Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 3-SMD, SOT-23-3 Variant |
| Current - Test | 20mA Green, 20mA Red | Configuration | Common Cathode |
| Color | Green, Red |
