970

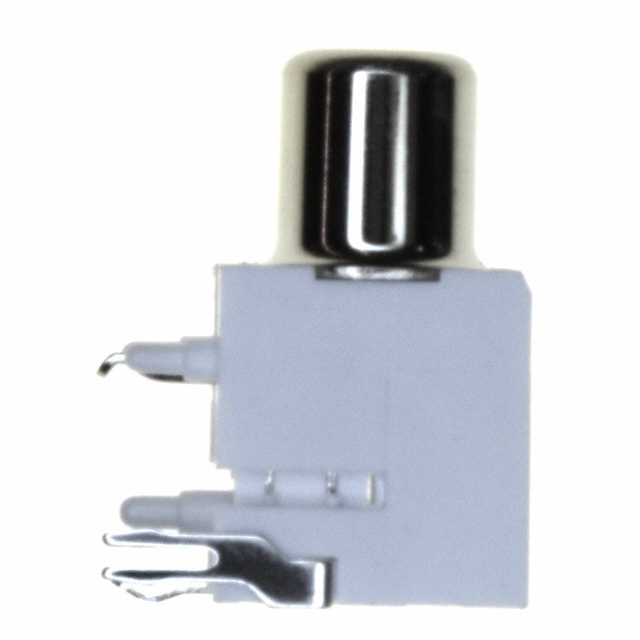

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 970 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 970 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 970 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN RCA JACK MONO 3.2MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.792 | $0.486 | $0.437 | $0.417 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.377 | $0.333 | $0.298 | $0.279 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 970 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71688 pcs | Data sheet | 970-973 DrawingPhone Jacks, Plugs |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 36-970 970K 970K-ND KEY1098 KEY1098-ND |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | White | Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Board Lock |
| Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder | Contact Material - Plating | Nickel |
| Contact Material | Brass, Phosphor Bronze | Connector Type | Phono (RCA) Jack |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, White | Actual Diameter | 0.125" (3.18mm ID), 0.327" (8.31mm OD) |
