8292

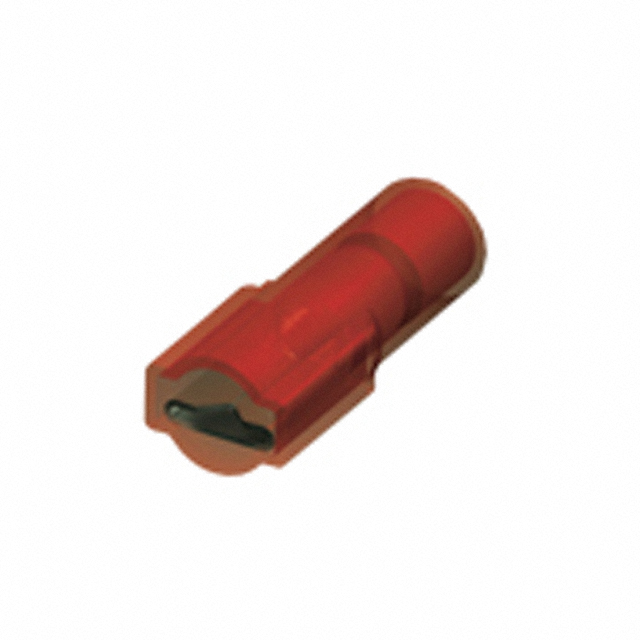

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8292 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8292 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8292 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN QC RCPT 18-22AWG 0.250 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.256 | $0.204 | $0.163 | $0.156 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.142 | $0.112 | $0.102 | $0.098 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8292 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN QC RCPT 18-22AWG 0.250 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 192750 pcs | Data sheet | 8292 DrawingSolderless Terminals |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Termination | Crimp | Terminal Type | Standard |
| Tab Width | 0.250" (6.35mm) | Tab Thickness | 0.032" (0.81mm) |
| Tab Length | - | Series | - |
| Packaging | Bulk | Other Names | 36-8292 8292K 8292K-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.870" (22.10mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.145" (3.68mm) |
| Insulation | Fully Insulated | Gender | Female |
| Features | - | Detailed Description | 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
