8246
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8246 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8246 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8246 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |

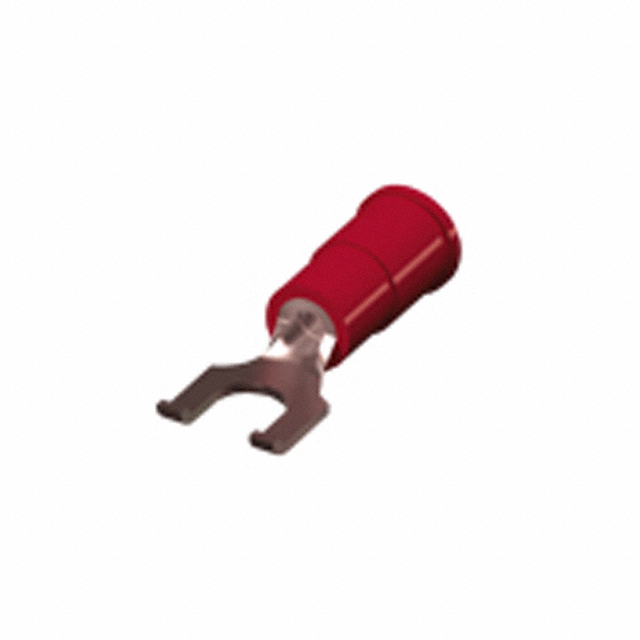

| Description | CONN SPADE TERM 18-22AWG #8 RED |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.106 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8246 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #8 RED | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 194523 pcs | Data sheet | 8246 DrawingSolderless Terminals |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.300" (7.62mm) | Tongue Inside Opening | - |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud | Series | - |
| Packaging | Bulk | Other Names | 36-8246 8246K 8246K-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Vinyl | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Termination | 0.450" (11.43mm) | Length - Ring Center to Termination | 0.250" (6.35mm) |
| Length - Overall | 0.700" (17.78mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper, ETP | Contact Finish | Tin |
| Color | Red |
