813
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 813 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 813 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 813 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |

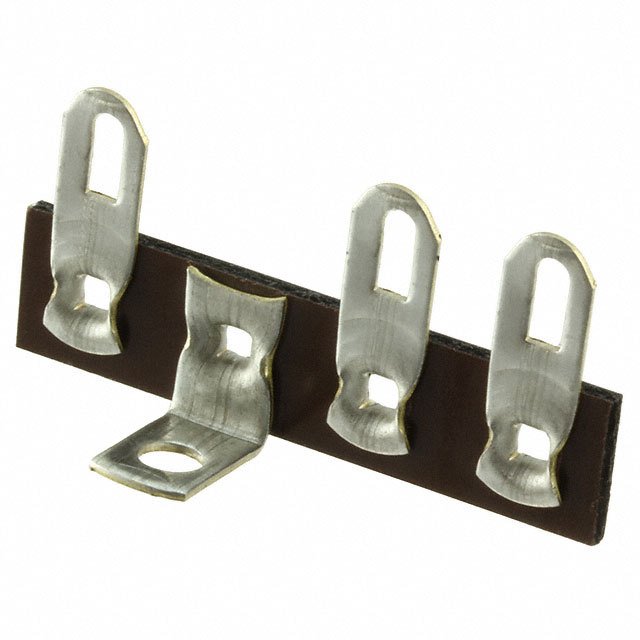

| Description | TERMINAL STRIP STD 3 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.273 | $0.256 | $0.204 | $0.196 | $0.179 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.173 | $0.143 | $0.128 | $0.124 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 813 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERMINAL STRIP STD 3 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158410 pcs | Data sheet | 813 DrawingTerminal Strips |
| Category | Connectors, Interconnects | Type | Terminal Lug Strip |
| Terminal Type | Terminal Lug, Single End | Series | - |
| Row Spacing | - | Pitch | 0.375" (9.53mm) |
| Other Names | 36-813 813K 813K-ND |
Number of Rows | 1 |
| Number of Positions | 4 (3 + 1 Ground) | Mounting Hole Diameter | 0.140" (3.56mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Material - Board | XP Phenolic | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Standard Strip |
| Detailed Description | 4 (3 + 1 Ground) Position Terminal Lug Strip 0.375" (9.53mm) Terminal Lug, Single End | Contact Material | Brass |
| Contact Finish | Tin | Board Size | 1.500" L x 0.375" W x 0.062" H (38.10mm x 9.53mm x 1.57mm) |
