7814

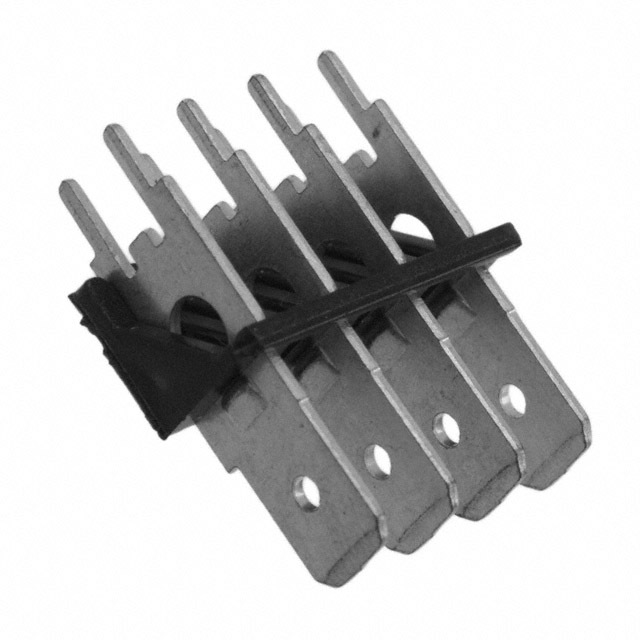

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7814 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7814 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7814 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN QC TAB 0.250 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.106 | $0.679 | $0.61 | $0.582 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.527 | $0.466 | $0.416 | $0.391 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7814 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN QC TAB 0.250 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79412 pcs | Data sheet | 7813 DrawingQuick-Fit Terminals |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Termination | Solder | Terminal Type | Header |
| Tab Width | 0.250" (6.35mm) | Tab Thickness | 0.032" (0.81mm) |
| Tab Length | 0.307" (7.80mm) | Series | - |
| Packaging | Bulk | Other Names | 36-7814 7814K 7814K-ND |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.984" (25.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | - |
| Insulation | Non-Mating End Insulated | Gender | Male |
| Features | 4 Tabs | Detailed Description | 0.250" (6.35mm) Quick Connect Male Solder Connector Non-Mating End Insulated |
| Contact Material | Brass | Contact Finish | Tin |
| Color | Black |
