3594

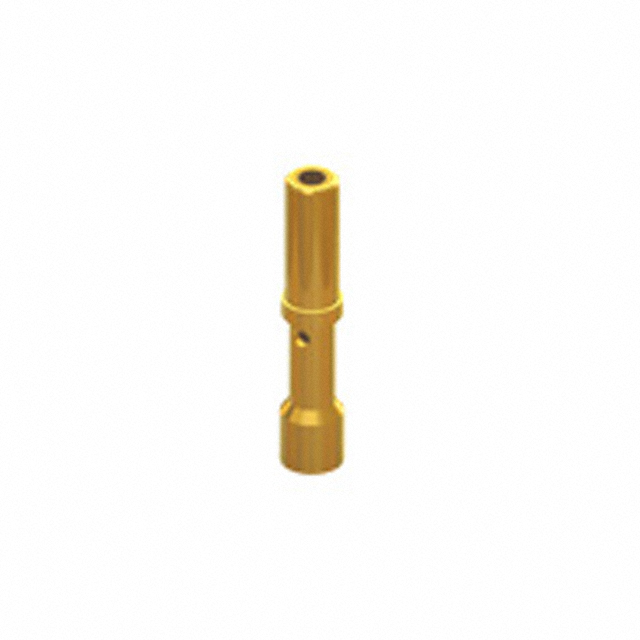

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3594 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3594 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3594 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .032-.046 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.331 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3594 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .032-.046 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 67540 pcs | Data sheet | Micro Jacks3594 Drawing |
| Category | Connectors, Interconnects | Termination | Crimp |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.200" (5.08mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 3594K 3594K-ND 36-3594 |
Operating Temperature | - |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.530" (13.46mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | - | Features | - |
| Detailed Description | Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Crimp | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
