3564

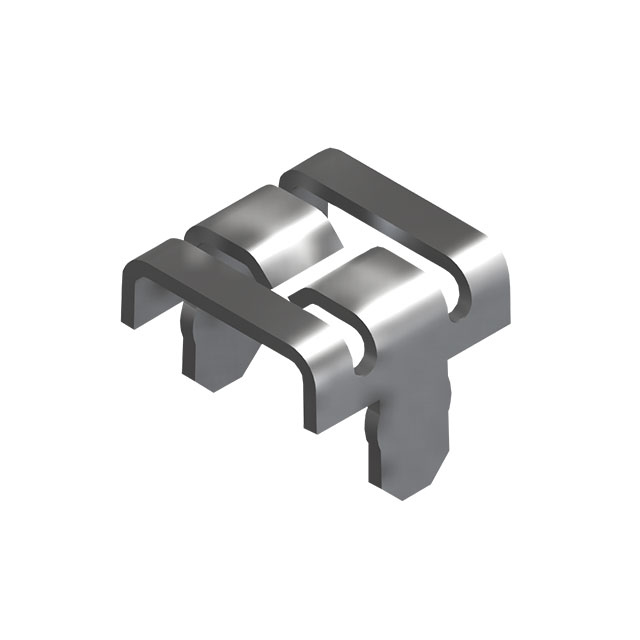

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3564 with confidence from Components-World.HK, 1 Year Warranty
Dowload 3564 Details in PDFSee Product Specifications for product details.
Buy 3564 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3564 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | FUSE CLIP BLADE 500V 15A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.101 | $0.093 | $0.07 | $0.065 | $0.057 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.055 | $0.045 | $0.041 | $0.04 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3564 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | FUSE CLIP BLADE 500V 15A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 564124 pcs | Data sheet | Auto Fuse Clips and Holders3564 Drawing |
| Category | Circuit Protection | Voltage | 500V |
| Termination Style | PC Pin | Series | - |
| Other Names | 3564K 3564K-ND 36-3564 |
Orientation | Vertical |
| Number of Circuits | 1 | Mounting Type | PCB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuseholder Type | Clip |
| Fuse Type | Blade | Fuse Size | 0.43" L x 0.15" W x 0.64" H (10.92mm x 3.81mm x 16.25mm) |
| For Use With/Related Products | MINI ATC, MINI ATO | Detailed Description | Fuse Clip 15A 500V 1 Circuit Blade PCB |
| Current Rating | 15A | Contact Material | Brass |
| Contact Finish | Tin |
