3522

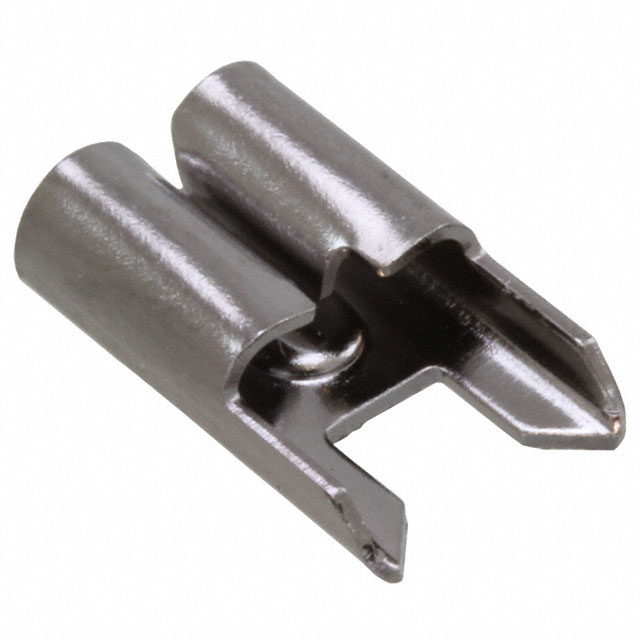

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3522 with confidence from Components-World.HK, 1 Year Warranty
Dowload 3522 Details in PDFSee Product Specifications for product details.
Buy 3522 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3522 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | FUSE CLIP BLADE 500V 30A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.068 | $0.063 | $0.047 | $0.044 | $0.039 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.037 | $0.03 | $0.028 | $0.027 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3522 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | FUSE CLIP BLADE 500V 30A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 836282 pcs | Data sheet | Fuse Clips and Holders (Auto)3522 Drawing |
| Category | Circuit Protection | Voltage | 500V |
| Termination Style | PC Pin | Series | - |
| Other Names | 3522K 3522K-ND 36-3522 3RBJ6070 |
Orientation | Vertical |
| Number of Circuits | 1 | Mounting Type | PCB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuseholder Type | Clip |
| Fuse Type | Blade | Fuse Size | 0.75" L x 0.2" W x 0.48" H (19.1mm x 5.1mm x 12.2mm) |
| For Use With/Related Products | ATC, ATO | Detailed Description | Fuse Clip 30A 500V 1 Circuit Blade PCB |
| Current Rating | 30A | Contact Material | Brass |
| Contact Finish | Tin |
