3501

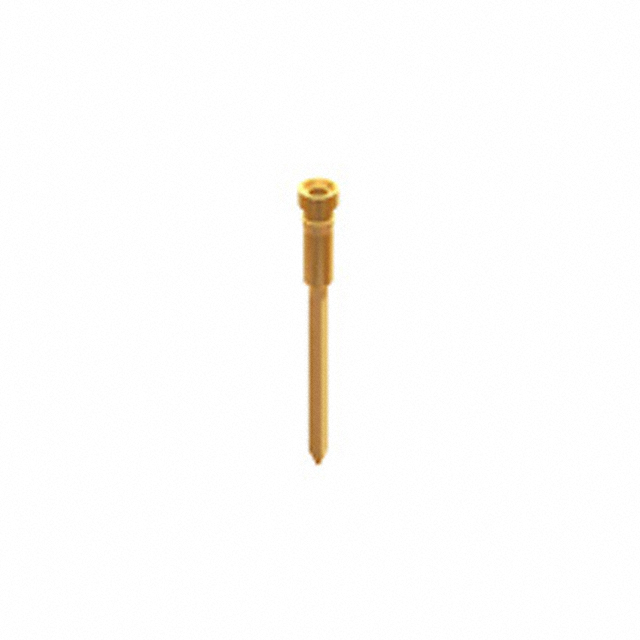

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3501 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .015-.025 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.257 | $0.193 | $0.154 | $0.148 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.135 | $0.108 | $0.096 | $0.093 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3501 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.025 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 250160 pcs | Data sheet | 3501 DrawingMicro Jacks |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | 0.025" (0.64mm) Square |
| Socket Depth | 0.160" (4.06mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 3501K 3501K-ND 36-3501 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.055" (1.40mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.553" (14.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.072" (1.83mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
