1998-3

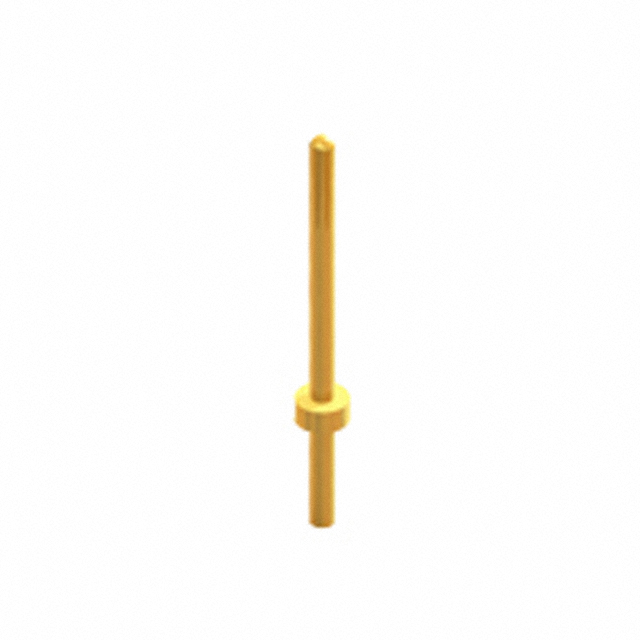

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1998-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1998-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1998-3 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.020DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.138 | $0.118 | $0.086 | $0.083 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.074 | $0.059 | $0.054 | $0.051 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1998-3 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.020DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 432038 pcs | Data sheet | 1998-3 DrawingMicro Pins |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | 0.020" (0.51mm) Dia |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia | Packaging | Bulk |
| Other Names | 1998-3K 1998-3K-ND 36-1998-3 KEY1243 KEY1243-ND |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.024" (0.61mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.370" (9.40mm) | Length - Below Flange | 0.100" (2.54mm) |
| Length - Above Flange | 0.250" (6.35mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.045" (1.14mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | 0.093" (2.36mm) |
