1694

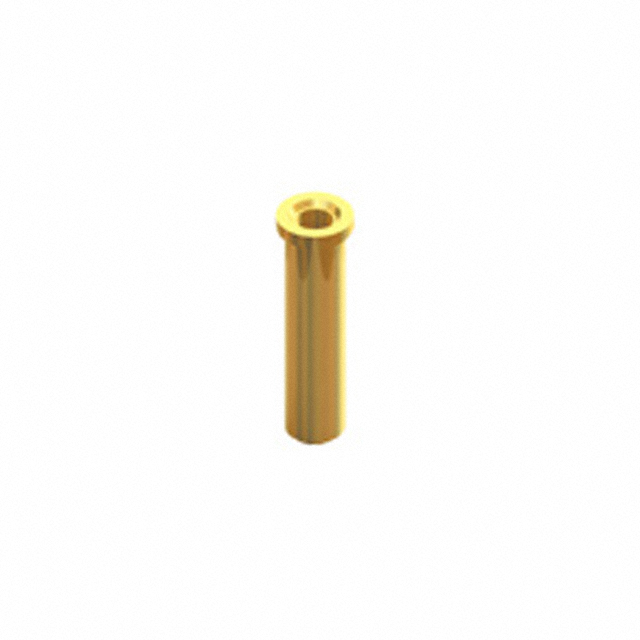

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1694 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1694 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1694 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .022-.032 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.121 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1694 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .022-.032 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 194794 pcs | Data sheet | 1694 DrawingMicro Jacks |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.233" (5.92mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 1694K 1694K-ND 36-1694 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.063" (1.60mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.259" (6.58mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.077" (1.96mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.022" ~ 0.032" (0.56mm ~ 0.81mm) |
