1682

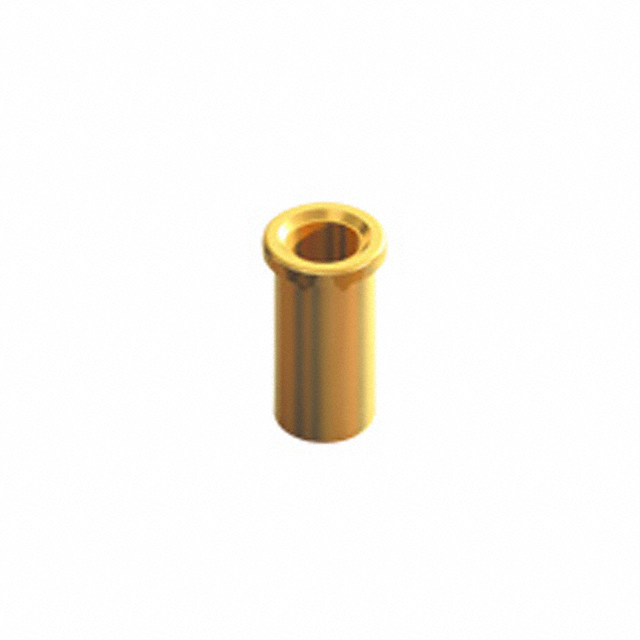

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1682 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1682 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1682 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .048-.064 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.425 | $0.276 | $0.249 | $0.238 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.217 | $0.19 | $0.162 | $0.152 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1682 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .048-.064 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147920 pcs | Data sheet | 1682 DrawingMicro Jacks |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.180" (4.57mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 1682K 1682K-ND 36-1682 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.102" (2.59mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.213" (5.41mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.120" (3.05mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.048" ~ 0.064" (1.22mm ~ 1.63mm) |
