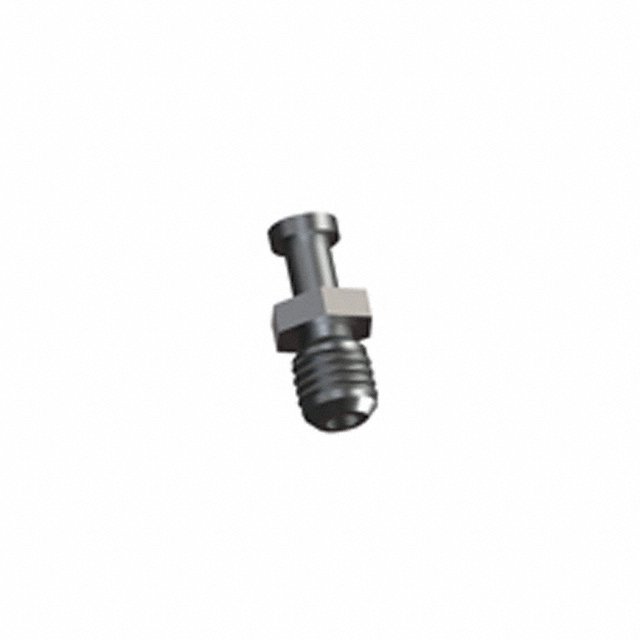

1563
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1563 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1563 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1563 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET HOLLOW L=3.96MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.224 | $0.168 | $0.134 | $0.129 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.118 | $0.094 | $0.084 | $0.081 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1563 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=3.96MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 285115 pcs | Data sheet | Turret Terminals1563 Drawing |
| Category | Connectors, Interconnects | Termination | Threaded |
| Terminal Type | Single End, Hollow | Staking Side OD | - |
| Staking Side ID | - | Series | - |
| Other Names | 1563K 1563K-ND 36-1563 KEY1111 KEY1111-ND |
Number of Turrets | Double |
| Mounting Type | Panel Mount | Mounting Hole Diameter | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.281" (7.14mm) |
| Length - Below Flange | 0.125" (3.18mm) | Length - Above Board | 0.156" (3.96mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) Hex |
| Diameter - Turret Head | 0.093" (2.36mm) | Detailed Description | Terminal Turret Connector Single End, Hollow 0.156" (3.96mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | - |
