15540

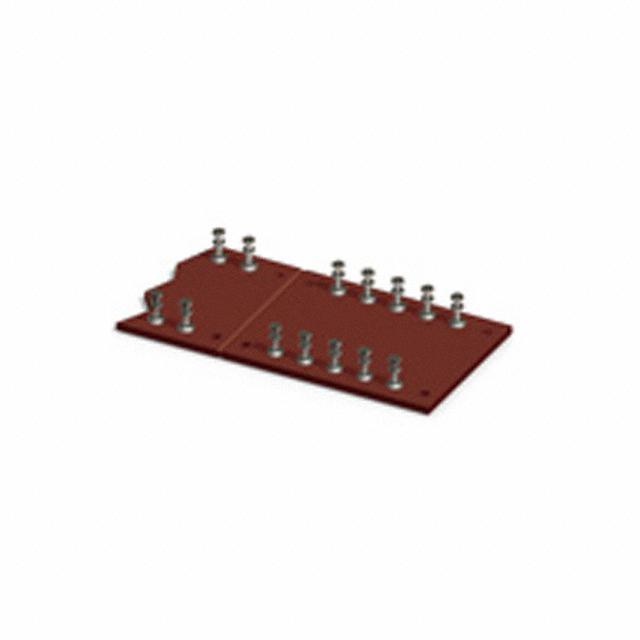

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15540 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15540 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15540 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | BOARD TERMINAL TURRET DBL 33POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $10.446 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15540 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | BOARD TERMINAL TURRET DBL 33POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3595 pcs | Data sheet | Turret Terminal Boards15540 Drawing |
| Category | Connectors, Interconnects | Type | Turret Board |
| Terminal Type | Turret, Single End, Double Turret | Series | - |
| Row Spacing | 0.562" (14.30mm) | Pitch | 0.250" (6.35mm) |
| Other Names | 15540K 15540K-ND 36-15540 |
Number of Rows | 2 |
| Number of Positions | 66 | Mounting Hole Diameter | 0.144" (3.66mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Material - Board | Glass Epoxy | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Miniature Strip |
| Detailed Description | 66 Position Turret Board 0.250" (6.35mm) Turret, Single End, Double Turret | Contact Material | Brass |
| Contact Finish | Tin | Board Size | 8.937" L x 0.875" W x 0.062" H (227.00mm x 22.20mm x 1.57mm) |
