15322
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15322 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15322 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15322 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |

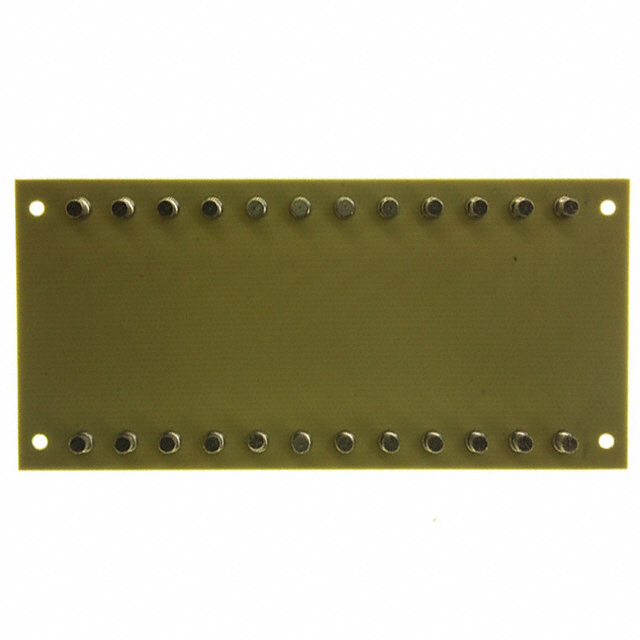

| Description | BOARD TERM TURRET DBL 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $6.045 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15322 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | BOARD TERM TURRET DBL 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4981 pcs | Data sheet | 15321-25 DrawingTerminal Boards, Strips |
| Category | Connectors, Interconnects | Type | Turret Board |
| Terminal Type | Turret, Single End, Double Turret | Series | - |
| Row Spacing | 2.000" (50.80mm) | Pitch | 0.375" (9.53mm) |
| Other Names | 15322K 15322K-ND 36-15322 |
Number of Rows | 2 |
| Number of Positions | 24 | Mounting Hole Diameter | 0.120" (3.05mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Material - Board | Glass Epoxy | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Standard Strip |
| Detailed Description | 24 Position Turret Board 0.375" (9.53mm) Turret, Single End, Double Turret | Contact Material | Brass |
| Contact Finish | Tin | Board Size | 5.250" L x 2.500" W x 0.093" H (133.35mm x 63.50mm x 2.36mm) |
