1526-2

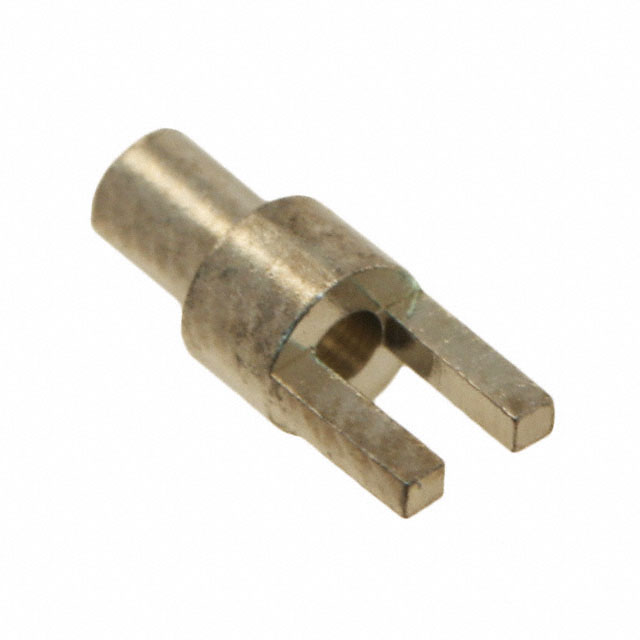

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1526-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1526-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1526-2 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET HOLLOW L=3.96MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.174 | $0.154 | $0.112 | $0.108 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.097 | $0.077 | $0.07 | $0.066 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1526-2 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=3.96MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 343221 pcs | Data sheet | Turret Terminals1526-1,2,3,4 Drawing |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | Single End, Fork, Hollow | Staking Side OD | 0.062" (1.57mm) |
| Staking Side ID | - | Series | - |
| Other Names | 1526-2K 1526-2K-ND 36-1526-2 KEY1229 KEY1229-ND |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.064" (1.63mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.240" (6.10mm) |
| Length - Below Flange | 0.084" (2.13mm) | Length - Above Board | 0.156" (3.96mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.094" (2.39mm) |
| Diameter - Turret Head | - | Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.156" (3.96mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.062" (1.57mm) |
