15226

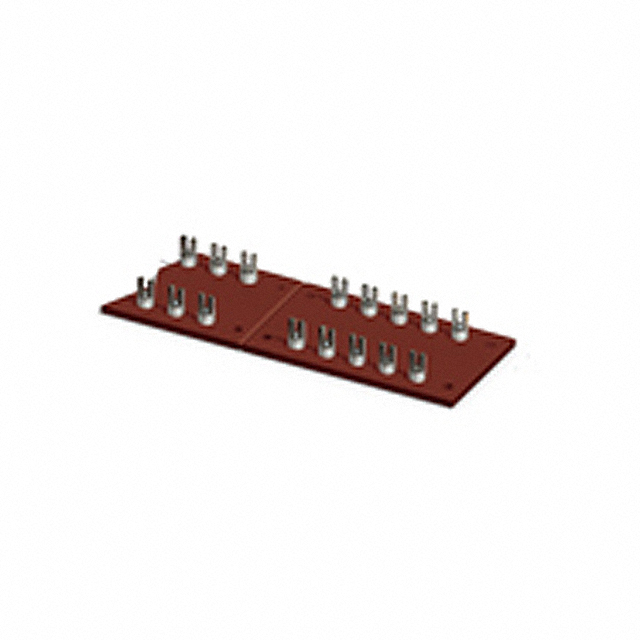

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15226 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15226 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15226 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | BOARD TERM TURRET MINI 50POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $9.802 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15226 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | BOARD TERM TURRET MINI 50POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3414 pcs | Data sheet | 15226 DrawingScored Turret Terminal Boards |
| Category | Connectors, Interconnects | Type | Turret Board, Scored |
| Terminal Type | Turret, Fork End | Series | - |
| Row Spacing | 0.500" (12.70mm) | Pitch | 0.218" (5.54mm) |
| Other Names | 15226K 15226K-ND 36-15226 |
Number of Rows | 2 |
| Number of Positions | 50 | Mounting Hole Diameter | 0.062" (1.57mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Material - Board | Glass Epoxy | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Miniature Strip |
| Detailed Description | 50 Position Turret Board, Scored 0.218" (5.54mm) Turret, Fork End | Contact Material | Brass |
| Contact Finish | Tin | Board Size | 7.812" L x 0.750" W x 0.062" H (198.40mm x 19.05mm x 1.57mm) |
