1520-4

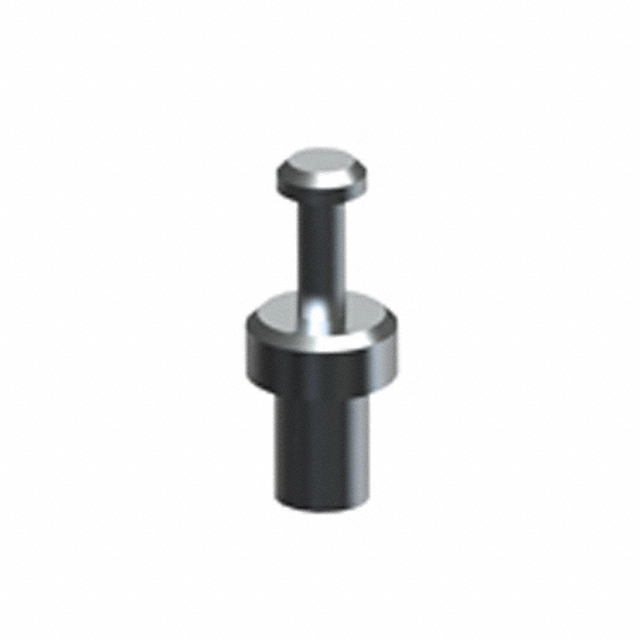

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1520-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1520-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1520-4 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET SINGLE L=4.75MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.128 | $0.122 | $0.089 | $0.086 | $0.077 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.074 | $0.061 | $0.056 | $0.053 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1520-4 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=4.75MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 435529 pcs | Data sheet | Turret Terminals |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | Single End | Staking Side OD | 0.078" (1.98mm) |
| Staking Side ID | - | Series | - |
| Other Names | 1520-4-ND 1520-4K 1520-4K-ND 36-1520-4 Q148140 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.082" (2.08mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.359" (9.12mm) |
| Length - Below Flange | 0.172" (4.37mm) | Length - Above Board | 0.187" (4.75mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | 0.075" (1.91mm) | Detailed Description | Terminal Turret Connector Single End 0.187" (4.75mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.125" (3.18mm) |
