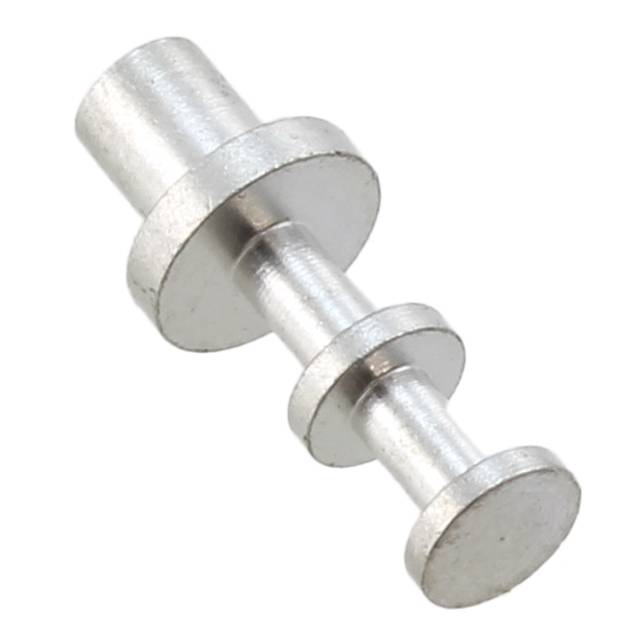

1514-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1514-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1514-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1514-2 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET SINGLE L=7.14MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.176 | $0.152 | $0.122 | $0.117 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.106 | $0.085 | $0.076 | $0.074 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1514-2 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=7.14MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 261117 pcs | Data sheet | 1514-1,2,3,4 DrawingTurret Terminals |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | Single End | Staking Side OD | 0.090" (2.29mm) |
| Staking Side ID | - | Series | - |
| Other Names | 1514-2K 1514-2K-ND 36-1514-2 |
Number of Turrets | Double |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.094" (2.39mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.386" (9.80mm) |
| Length - Below Flange | 0.105" (2.67mm) | Length - Above Board | 0.281" (7.14mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.156" (3.96mm) |
| Diameter - Turret Head | 0.109" (2.77mm) | Detailed Description | Terminal Turret Connector Single End 0.281" (7.14mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.062" (1.57mm) |
